This Technical Datasheet suits for NTFOS2022 Splitter Splice Closure (Hereafter abbreviated as FOSC), NTFOS2024 splitter closure can install various kind of PLC or box splitter; it is especially for FTTH project. The scope of application is: aerial, underground, wall-mounting, handhole-mounting and duct-mounting. The ambient temperature ranges from -40℃ to +65℃.
2) Support grounding by using ground connection wires.
■ Excellent Practicabilit
1) Adopts excellent composite PP and stainless steel materials to reach a longer service life for 20 years (depends on environment).
2) Designed with a value to facilitate testing with strong anti-impaction and anti-corrosion performance.

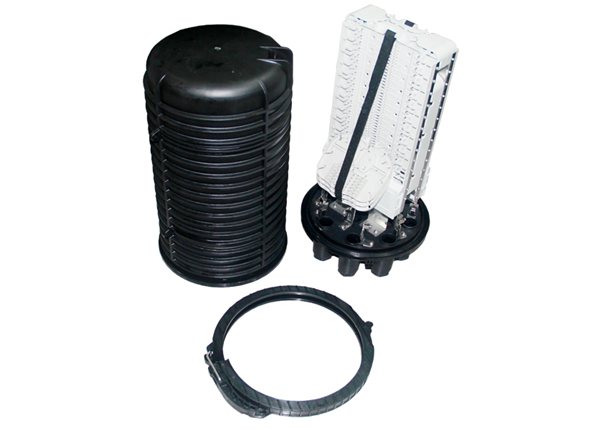

Product name | Max 960 Cores 10 Ports Vertical Type Fiber Optical Splice Closure |
Weight (excluding outside box) | About 7.15 kg |
Color | Black |
Material | PP+30% GF |
Outside Dimension | (H × W × L) 280mm (D) × 590mm (H) |
Water Proof Level | IP68 |
Diameter of fiber cable | Oval port 1pc, φ8~23mm; Branch ports 8pcs, φ8~22mm; |
Capacity of FOSC | Bunchy max. 960 Cores |
Seal Method | Mechanical seal |
Mounting kits Aerial | Aerial / Wall / Pole / Manhole |
Working Temperature | -20°C~+70°C |
Storage Temperature | -20°C~+70°C |
