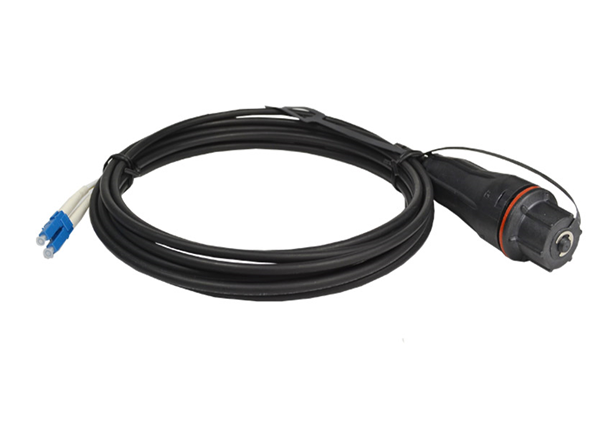

IP67 Waterproof LC Duplex to Fullaxs LC Singlemode Fiber Optic Assembly Cable

Item Description

This is a factory-terminated, sealed, outdoor-rated fiber optic patch cord. Its job is to connect two hardened ports on outdoor equipment, providing a reliable, waterproof link for a duplex (two-fiber) signal. The "Fullaxs" brand indicates it's designed to mate with specific Corning® hardened adapters. This cable is designed for making a sealed, protected connection between two pieces of equipment in a harsh environment. FullAXS is a sealing system for optical and electrical interfaces which mates directly into the SFP modules through a bulkhead construction.

Features and Applications

✅ Ruggedised sealing system for fiber-to-the-antenna and industrial applications;
✅ FTTA , WiMax base station,CATV outdoor Application;
✅ Cable's jacket:LSZH,PE,PU.,Armoured or Non Armoured;
✅ Cable diameter 4.8 mm, 5.5 mm or 7mm;
✅ Waterproof (IP65), dust proof and corrosion resistant.

Cable Structure

✅ Type1:2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
✅ Type2:2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm;
✅ Type3:0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+Jacket OD=7.0mm;
✅ Type4: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+power cable 0.75M2 *2 Jacket OD=8.5.0mm;

Well-known as one of the leading fullaxs-lc/upc 4.8mm duplex hybird patch cables manufacturers and suppliers in China, NEATEL Technology is equipped with advanced technology and many highly qualified staff. Please be free to wholesale the customized products with us.

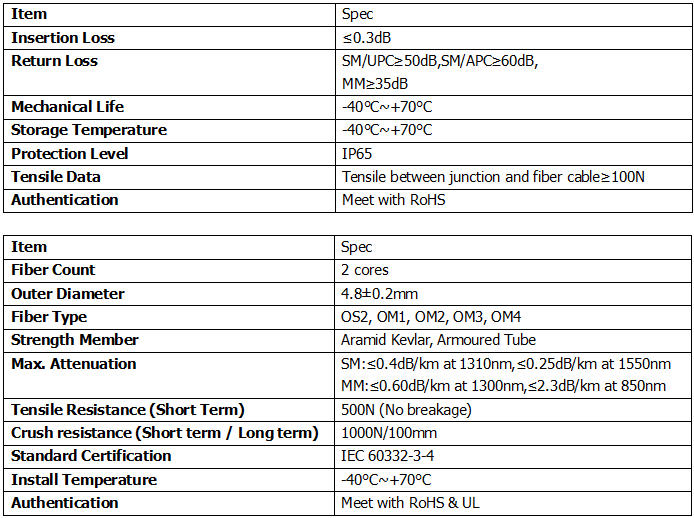

Technical Parameter
