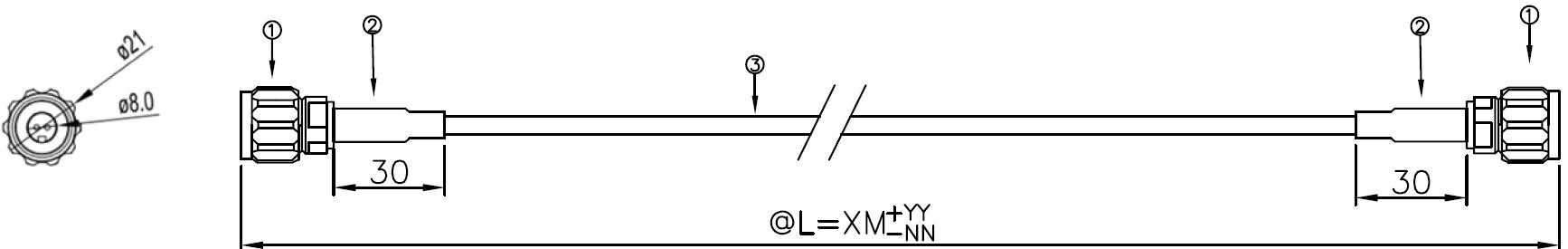

Product Drawing

✔ Thread Locking Mechanism: Ensures stable and long-term reliable connections;
✔ Blind Mating Design: Special guide mechanism allows simple, one-handed insertion;
✔ Compact and Durable: Compact design, salt spray and corrosion resistant materials, tested service life of more than 20 years;
✔ Fully Sealed Construction: Offers complete protection against dust, water, and withstand humid and salty environments;
✔ Customizable Options: Tailored designs for cable type, jacket material, and connector preferences.

Application

✔ Outdoor fiber communication connections in harsh environments;
✔ Military-grade communication systems;
✔ Oil field and mining communication networks;
✔ Remote wireless base stations for 3G, 4G, and 5G;
✔ Video surveillance and security systems;
✔ Fiber optic sensing applications in extreme conditions.

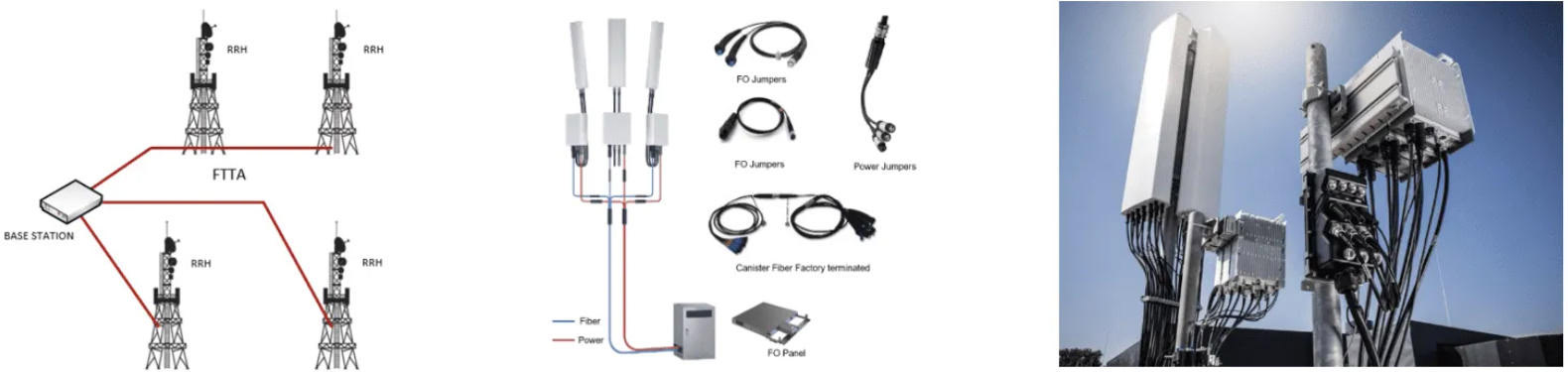

🔹 Telecommunications: FTTA deployments for base station remote radios in mobile communication networks.
🔹 Industrial and Energy: Reliable fiber connections for oil, gas, and mining operations.
🔹 Aerospace and Defense: Rugged connections designed for military communication and aerospace systems.
🔹 Event Broadcasting: Temporary cable installations for sports events, car racing, and natural disaster recovery.
🔹 Utility and Transportation: Intelligent substations and railway signal control systems.
