Item Description

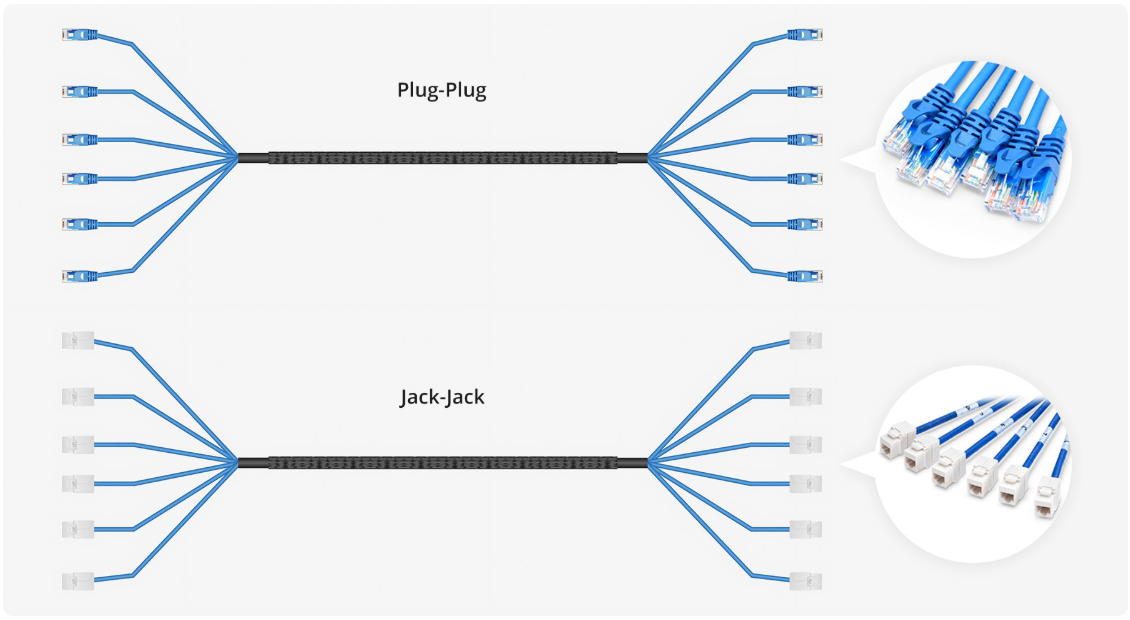

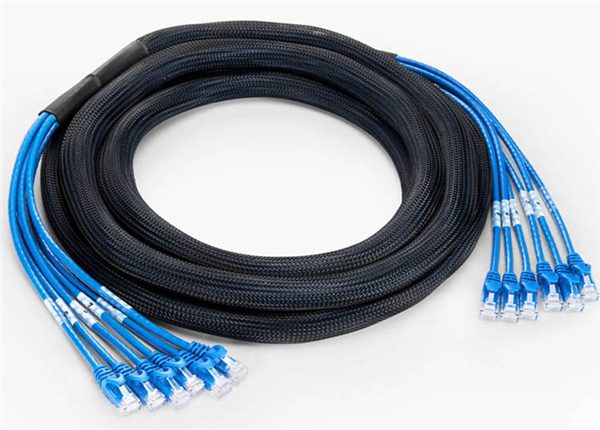

The copper trunk assembly combines six certified CAT6 cables that are perfect for enterprise data centers, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Factory termination and testing minimize potential failure points and ensure verified performance while saving time and labor, as compared to field-terminated installations. A braided sleeve binding bundles individual cables into an aesthetic and cohesive trunk assembly, ensuring easy and efficient installation. NEATEL offers regular custom choices such as cable count, connector type, color, etc.
Features and Applications
Design Advantages
Pre-Terminated Convenience
✔ Factory-terminated with strain relief boots.
✔ Eliminates field termination errors.
✔ Saves 75%+ installation time vs. field-terminated cables.
High-Density Connectivity
✔ 6-in-1 design reduces cable clutter.
✔ Ideal for:
Switch-to-patch panel connections.
Server rack trunking.
IDF-to-MDF backbone links.
CMR Safety Rating
✔ Meets UL 1666 flame test requirements.
✔ Suitable for vertical runs between floors.
✔ Produces less smoke than general-purpose cables.
Performance Characteristics
✔ Insertion Loss: <21dB @ 250MHz
✔ NEXT (Near-End Crosstalk): >44dB
✔ DC Resistance: <9.38Ω/100m
✔ Propagation Delay: <548ns/100m
Data Center:
✔ Top-of-rack switch connections.
✔ Spine-leaf architecture trunks.
Enterprise Networks:
✔ Wiring closet consolidations.
✔ Campus backbone distribution.
A/V Systems:
✔ HDBaseT signal distribution.
✔ Digital signage networks.
Installation Guidelines
✔ Bend Radius: Maintain minimum 4x cable diameter (≈1" for bundled cables).
✔ Tensile Load: Do not exceed 25lbs pulling force.
✔ Separation: Keep 12" from parallel power runs.
✔ Dressing: Use vertical managers every 5ft in racks.
