Item Description

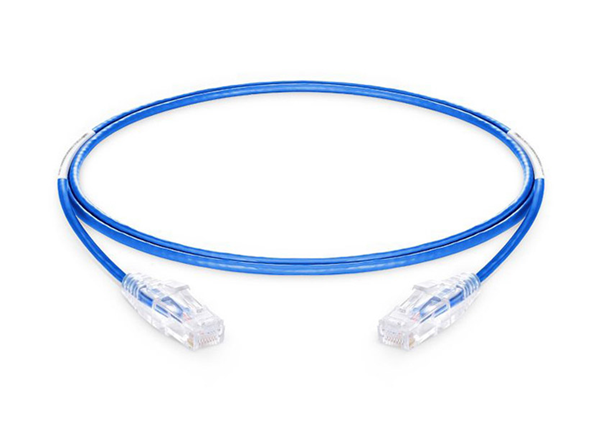

The Cat6 slim patch cable is the perfect solution for high density datacenter applications. Its compact 28AWG design simplifies installation and management. Smaller patch lead size helps alleviate congestion as well as improving airflow with in the racks. Snagless boot prevents unwanted cable snags during installation and provides extra strain relief, which provides easy access in high-density applications. All patch cords shall be compatible with both T568B wire scheme. The smaller diameter makes for a slimmer, more flexible cable that is perfect for cross connects, workstations or racks with higher-density and limited space. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
Features and Applications
Why Choose This Cable?
✅ Ultra-Slim Design:
✔ 28AWG is 40% thinner than standard 24AWG Cat6.
✔ Ideal for:
✔ High-density patch panels
✔ Cable management in tight spaces (e.g., behind TVs, under carpets)
✔ A/V installations requiring discreet routing
✅ Flexibility & Weight:
✔ Weighs ~50% less than standard Cat6.
✔ Easier to route through conduits or cable organizers.
✅ Cost-Effective:
✔ Lower material cost than shielded/SSTP variants.
✔ No grounding requirements (simpler installation).
Performance Considerations
⚠ Distance Limitations:
✔ 1Gbps: Up to 55m (vs. 100m for 24AWG).
✔ 10Gbps: Not recommended (exceeds insertion loss limits).
Application
✔ Office Workstations: Neat under-desk cable management.
✔ Digital Signage: Slim profile for discreet TV/monitor connections.
✔ Conference Rooms: Easy routing through cable raceways.
✔ IoT Devices: Low-power, short-reach connections.
