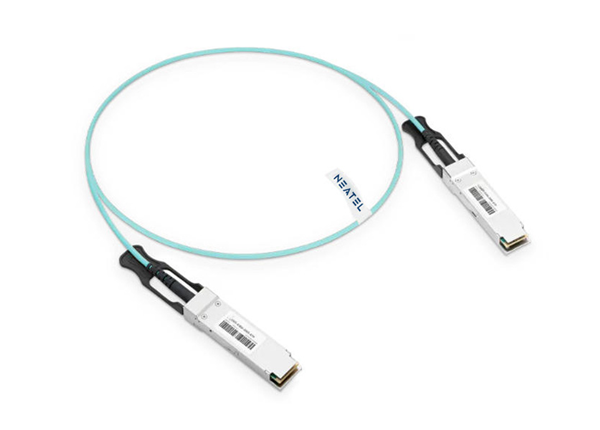

NVIDIA/Mellanox Compatible AOC 3m (10ft) Ethernet 200GbE QSFP56 Active Optical Cable

Item Description

NVIDIA/Mellanox Networking from NEATEL is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s Ethernet systems. NEATEL can offer cost-effective NVIDIA/Mellanox compatible 3 meters active optical cables. The cable has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system and contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s. It is widely used in high-speed data centers, and HPC (High-Performance Computing).

Features and Applications

✔ Minimum Bend Radius 30mm.
✔ Provide Professional Compatibility and Parameter Test Reports.
✔ Compliant with Hot Pluggable QSFP56 MSA Standard.
✔ Compliant with RoHS Environmental Standard (Lead-free).
✔ DDM(Digital Diagnostic Monitoring) Supported.
✔ 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

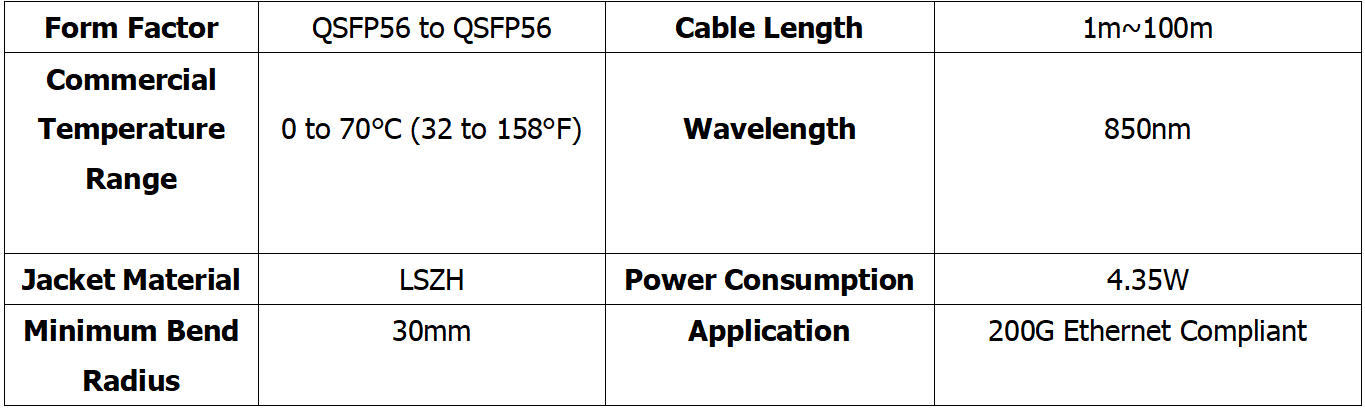

Technical Parameter

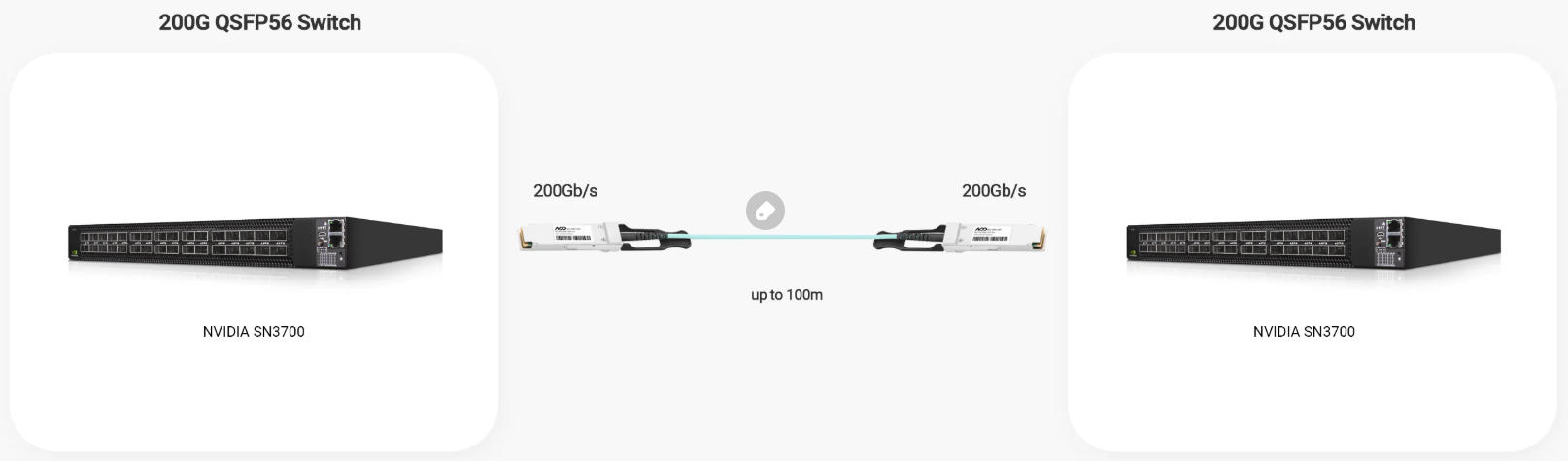

Application - 200G Switch to 200G Switch

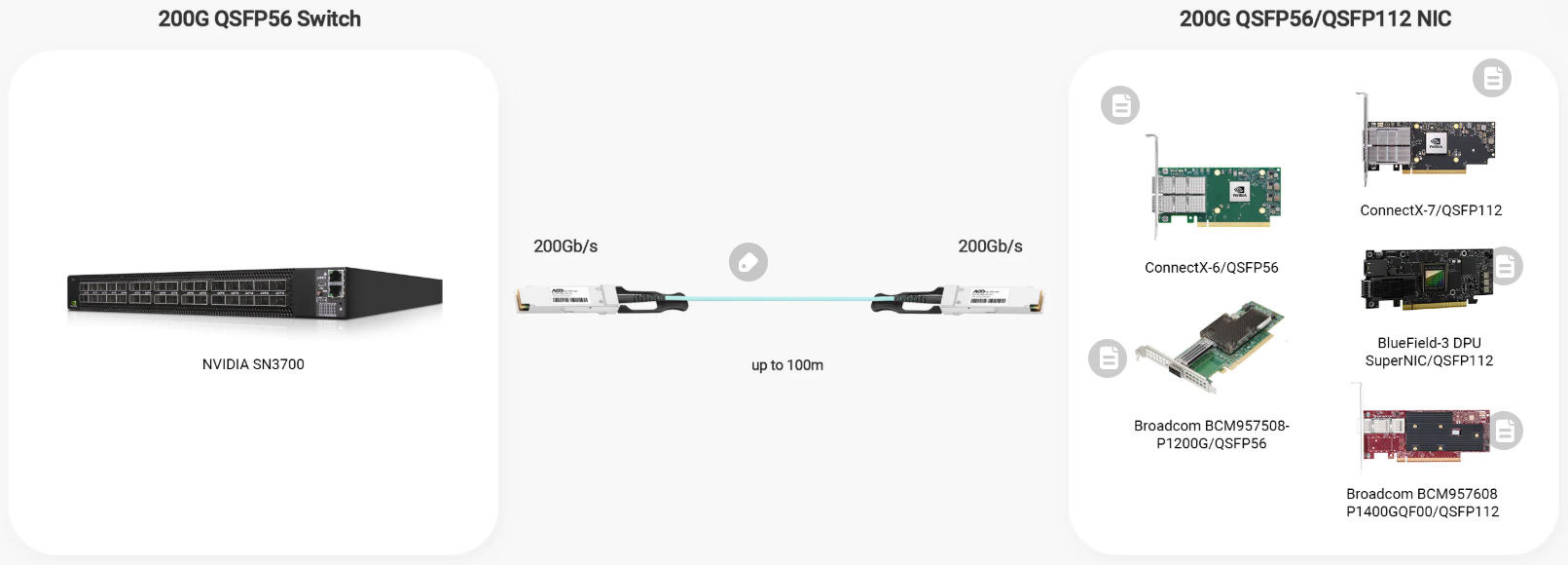

Application - 200G HDR QSFP56 Switch to 200G HDR HCA
