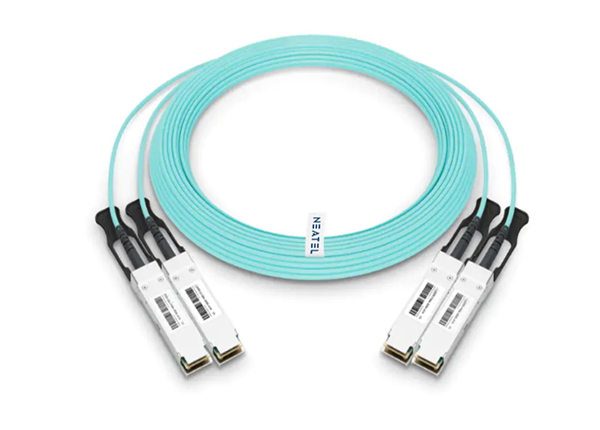

Breakout AOC 3m (10ft) 2 x 200G QSFP56 InfiniBand HDR to 2 x QSFP56 InfiniBand HDR Active Optical Cross Connect Splitter H-Cable (850nm, MMF)

Item Description

This kind of AOC is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), cost-effective 2 x 200Gb/s to 2 x 200Gb/s active optical splitter cable (AOC), designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems. It provides cross-connect capability between ToR (Top of Rack) and Spine switches. The cable enables a HDR InfiniBand QSFP56 switch port to operate as 2 x HDR100. It creates a non-blocking fat-tree topology doubling the number of ports. This eliminates a third level of switching, which is needed for traditional cluster design of 1600 up to 3200 HDR100 ports, and results in significant CAPEX and OPEX savings. By reducing a layer of switching the cluster latency is reduced, which results in improved performance.

Features and Applications

When networking between switches using 2 x 200G HDR Splitter Cable, the number of switch devices is significantly reduced, along with a decrease in cable quantity, resulting in improved port accessibility for network setup. This offers a smoother and more cost-effective network expansion capability, particularly during the gradual increase in user access demands from 800 to 1600.

Why NEATEL IB products?

NEATEL's 200G InfiniBand HDR AOC provides exactly the same technology and performance standards including low power consumption, high bandwidth, high density, lowest latency, and insertion loss as NVIDIA/Mellanox for full compatibility with InfiniBand systems. Bandwidth tests and latency tests in the HDR network environment are verified by NVIDIA/Mellanox equipment connection, and the practical cases of supercomputing application solutions associated with InfiniBand products of NEATEL service are verified to be fully comparable to the performance and quality of the original.

Technical Parameter

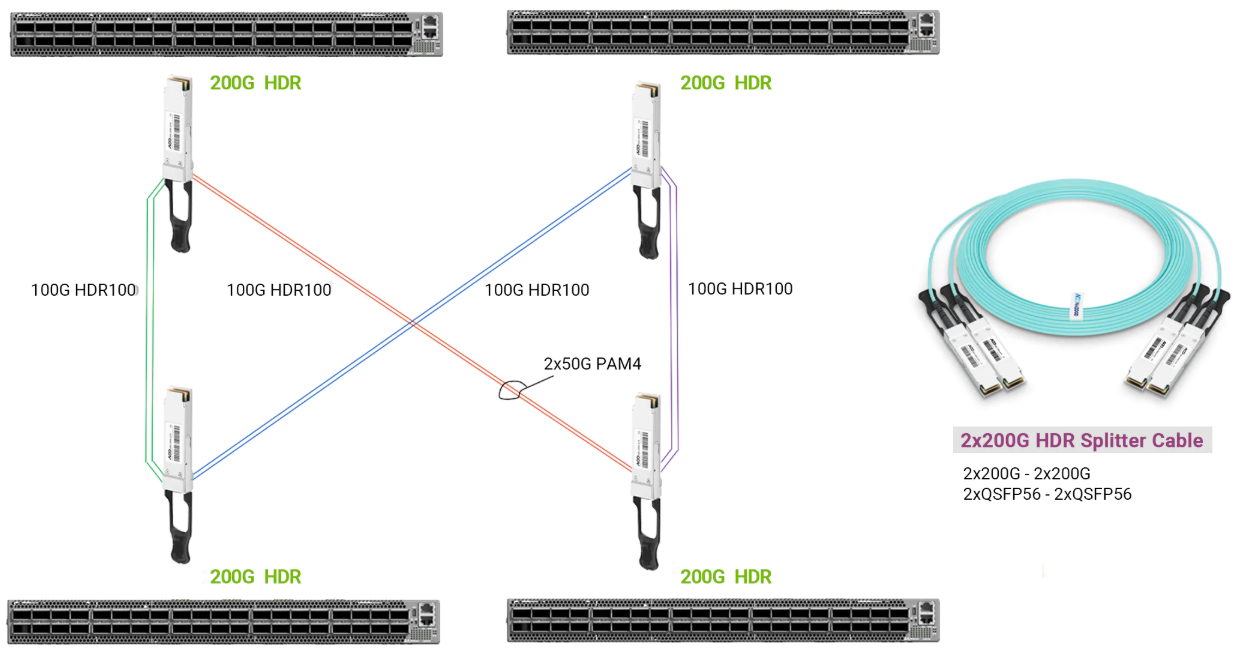

200G HDR QSFP56 Switch to 200G HDR Switch
