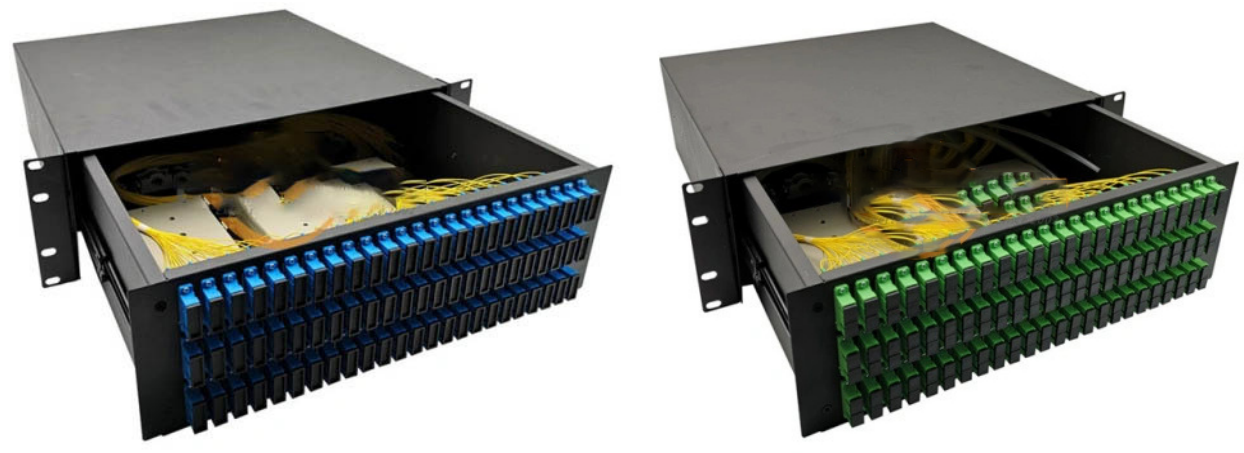

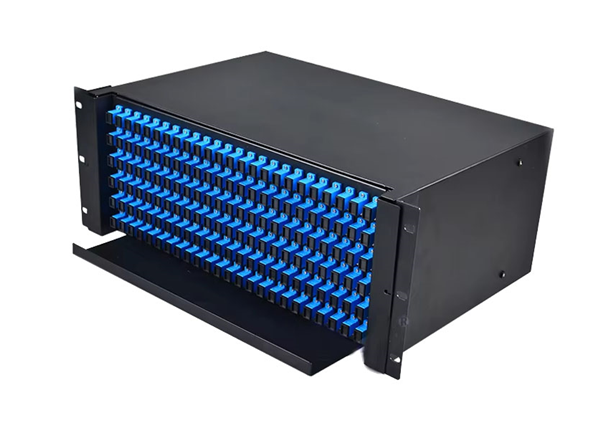

This NEATEL-288F-1U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying. It is sliding type 4U height for 19inch rack mounted application. It can be 144F for SC or 288F for LC solutions. There are cable management plate with fixing holes at back side of patch panel.

✔ Ultra-high density wiring application scenario;
✔ Standard 19-inch width;
✔ Ultra high density reaches 4U 288 cores;
✔ Double rail design for easy installation and maintenance;
✔ Lightweight Cold-rolled Steel material box;
✔ Spray surface treatment process;
✔ Customized color and silk screen LOGO.

Application

✔ Data center;
✔ Pre-terminated installations or telecommunication networks.

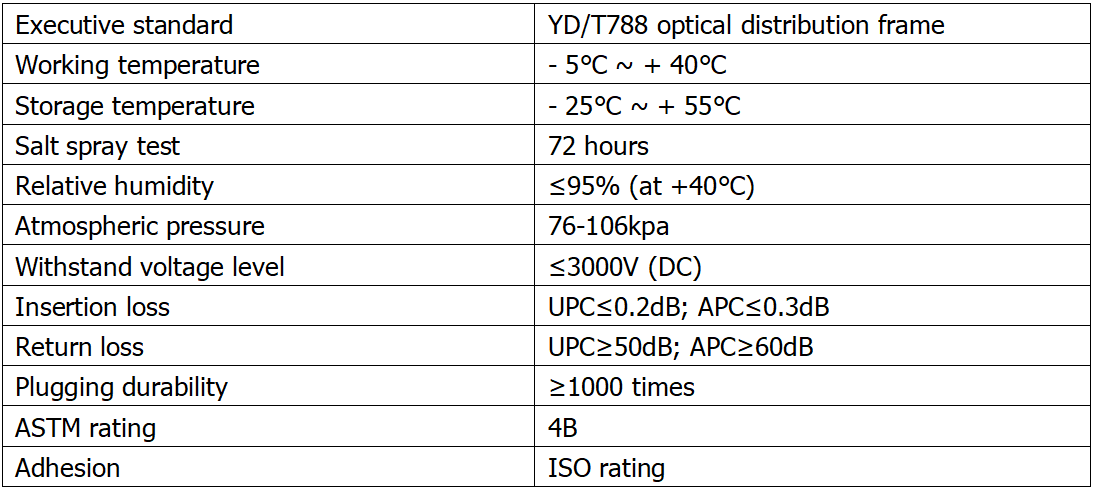

Specification

🔹 Dimension H*W*D: 4U*482 (Include side bracket)*400mm*175.7mm;
🔹 Material: SPCC, 1.2mm thickness, black (RAL9005);
🔹 Operating Temperature: -20 to +70;
🔹 Net Weight: 6.8kg.
