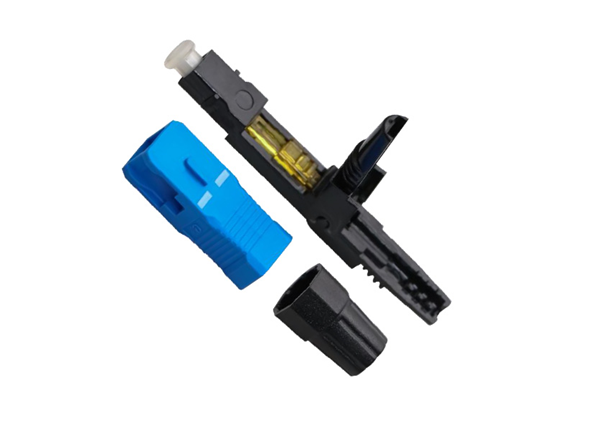

SC / UPC Fiber Optical Quick Connector

Product Image
Item Description
Features and Applications
Technical Parameter

Product Image

Item Description

SC / UPC SM Fast Connector, Cable Outer Diameter 2.0mm, 3.0mm, 2.0*3.0mm, length 55mm, Green

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

Features and Applications

✔ Convenience in field assembly with steady stability
✔ Embedded optical fiber structure to save time and cost in filed termination
✔ Pressing clip structured makes the welding more simple
✔ V groove alignment method and up-down opening makes fiber termination fast and easy
✔ The fast connector can be reusable up to 5 times.

Application

✔ FTTX systems;
✔ PON Networks;
✔ Local Areal Network (LAN);
✔ Fiber access and signal maintenance.

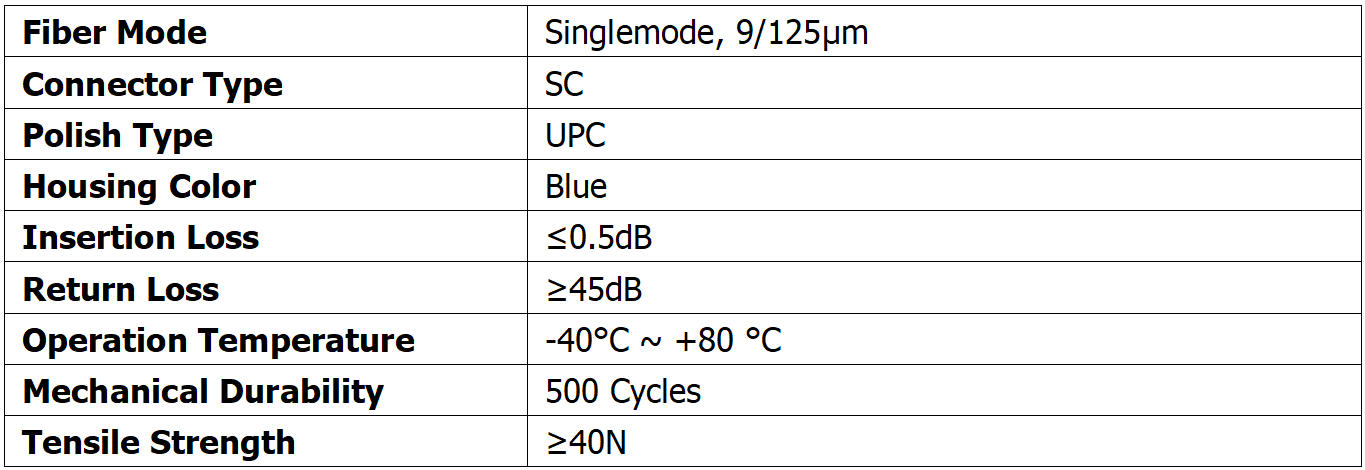

Technical Parameter
