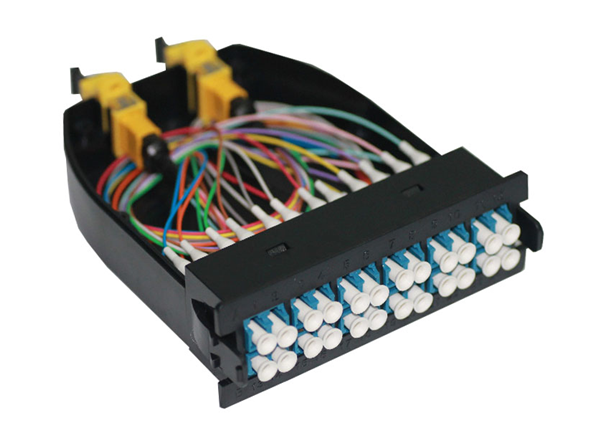

✅ Fiber Count & Configuration:
✔ 12F Cassette: Converts one 12-fiber MTP into 6 duplex LC connections.
✔ 24F Cassette: Converts one 24-fiber MTP into 12 duplex LC connections.
✔ Supports OS2 single-mode fiber (low attenuation, long-distance transmission).

✅ OS2 Single-Mode Fiber:
✔ Optimized for 1310nm & 1550nm wavelengths.
✔ Ultra-low loss (≤ 0.4 dB/km @ 1310nm, ≤ 0.3 dB/km @ 1550nm).
✔ Ideal for long-haul, high-speed networks (10G/40G/100G/400G+ with DWDM/CWDM).

✅ Connector Types:
✔ MTP (MPO) Interface: Male or female (key-up/key-down options available).
✔ LC Duplex Output: Standard UPC or APC (angled polish for reduced reflectance).

✅ Design & Compatibility:
✔ Slide-out cassette for easy installation in fiber enclosures (1U/2U/4U patch panels).
✔ Compatible with MTP-12/24 trunk cables (e.g., for data center spine-leaf architectures).
✔ OS2 fibers are typically yellow-colored (standard for single-mode).

✅ Installation Notes:
✔ Polarity Management: Ensure MTP polarity (Type A/B/C) matches the system design.
✔ APC vs. UPC: Use APC (green connectors) for low-reflection applications (e.g., PON, RF video).
✔ Bend Radius: Avoid sharp bends in OS2 fibers to prevent signal loss.

✅ Compatible Products:
✔ MTP Trunk Cables: 12/24-fiber OS2 single-mode trunk cables (e.g., Corning, CommScope).
✔ Patch Panels: 1U/2U fiber enclosures (e.g., Panduit, Leviton, Siemon).
✔ LC Patch Cables: OS2 single-mode LC duplex cables (UPC/APC).

✅ Typical Applications:
✔ Data Centers: High-density patching for 100G/400G ZR/ZR+ optics.
✔ Telecom/Carrier Networks: Long-distance backbone links (FTTx, DWDM systems).
✔ Enterprise Networks: Structured cabling for single-mode SAN/CATV/OTN.
