100G 24 FO MPO/MTP to 12 x DLC LGX Cassette Module

Product Image
Item Description
Features and Applications
Technical Parameter

Product Image

100G 24 FO MPO/MTP to 12 x DLC LGX Cassette Module

Item Description

The MPO / MTP® module box is pre-termianted to increase the installation speed. The module box and the external MPO / MTP® port can be easily and efficiently connected to the main line. A single MPO / MTP® provides instant connection to 24 fibers. This high-density fiber breakout module converts a 24-fiber MPO/MTP trunk cable into 12x duplex LC connections, enabling seamless integration of 100G/40G MPO-based systems with 10G/25G LC-based equipment.

Features and Applications

✔ 24-Fiber MPO/MTP Input → 12x Duplex LC Outputs (UPC/APC options).
✔ Supports 100G-SR4, 40G-SR4, 10G-SR, and 25G-SR✔ OM3/OM4 Multimode or OS2 Single-Mode Compatibility.
✔ LGX-Format Module – Fits standard LGX patch panels.
✔ Low Insertion Loss (≤0.5 dB typical).
✔ Polarity Managed (Type A/B/C Configurable).

🔹 Typical Applications
✔ Data Center Migration (100G MPO spine switches → 10G/25G LC servers).
✔ High-Density Aggregation Points.
✔ Telecom Central Offices.
✔ Cloud & Enterprise Networks.

🔹 Polarity Management
The module maintains proper TIA-568 polarity through:
✔ Type A (Straight-Through).
✔ Type B (Reversed).
✔ Type C (Pair-Flipped).

🔹 Why Use This Breakout Solution?
✔ Simplifies Migration from 40G/100G MPO to 10G/25G LC
✔ Reduces Clutter vs. individual MPO-LC breakout cables
✔ Maintains High Density in LGX patch panels
✔ Hot-Swappable for easy maintenance

🔹 Installation Notes

✔ Verify MPO polarity matches your system requirements.

✔ Ensure clean connectors before installation.

✔ Use strain relief for cable management.

✔ Test end-to-end loss after installation.

🔹 Compatible Equipment
✔ MPO-24 Trunk Cables (OM3/OM4/OS2).
✔ LGX Patch Panels (ADC, Panduit, CommScope).
✔ 100G-SR4/40G-SR4 Switches (Cisco, Juniper, Arista).

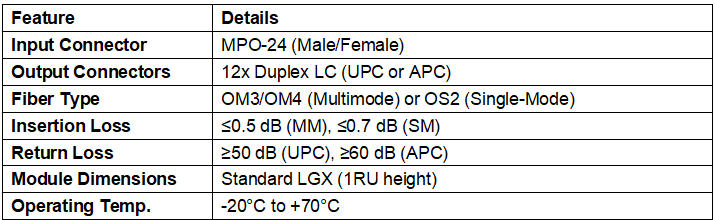

Technical Parameter

Need Help Selecting the Right Configuration?

Specify:
✅ Multimode (OM3/OM4) or Single-Mode (OS2)?
✅ UPC or APC Polish?
✅ Required Polarity Type?
