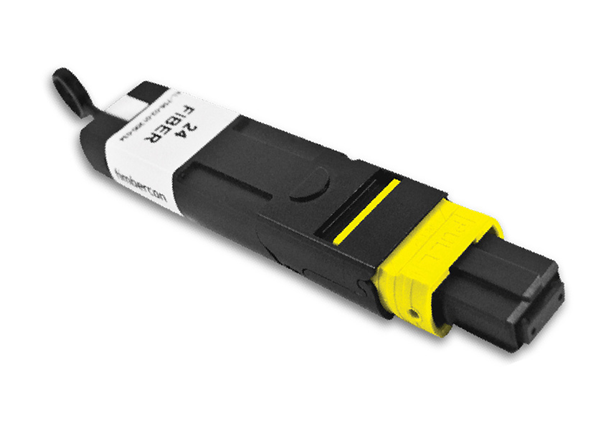

The 24-Fiber MPO/MTP® Singlemode OS2 Loopback from NEATEL is a high-performance testing tool designed for validating and troubleshooting 24-fiber MTP®/MPO-based singlemode optical systems. It provides a closed optical path for continuity checks, insertion loss (IL) verification, and optical return loss (ORL) testing in high-density data center and telecom networks.
✅ Connector & Fiber Type
✔ Connector: 24-fiber MTP®/MPO (male or female, key-up/key-down options).
✔ Fiber Type: OS2 (ITU-T G.652.D) singlemode (9/125µm).
✔ Polish Type:
✔ APC (Angled Physical Contact, 8° angle) – For ultra-low back reflection (≥65 dB RL).
✔ UPC (Ultra Physical Contact) – For standard applications (≥50 dB RL).
✅ Optical Performance
✔ Insertion Loss (IL): ≤0.3 dB (typical).
✔ Return Loss (RL):
✔ APC: ≥65 dB.
✔ UPC: ≥50 dB.
✔ Polarization-Dependent Loss (PDL): <0.1 dB.
✅ Mechanical & Environmental Durability
✔ Mating Cycles: ≥500 (IEC 61753-1 compliant).
✔ Operating Temperature: -20°C to +70°C.
✔ Storage Temperature: -40°C to +85°C.
✔ Humidity Resistance: 85% RH (non-condensing).
✅ Applications
✔ Testing 24-fiber MTP®/MPO trunk cables.
✔ Validating 100G/400G PSM4 transceivers.
✔ OTDR & optical power meter calibration.
✔ Data center certification (TIA-568.3-D, ISO/IEC 14763-3).
✔ Manufacturing & lab testing of MTP®/MPO systems.
