5.0mm Pre-connectorized OptiTap to SC APC Simplex Armored Fiber Optic Jumper

Product Image
Item Description
Features and Applications
Technical Parameter

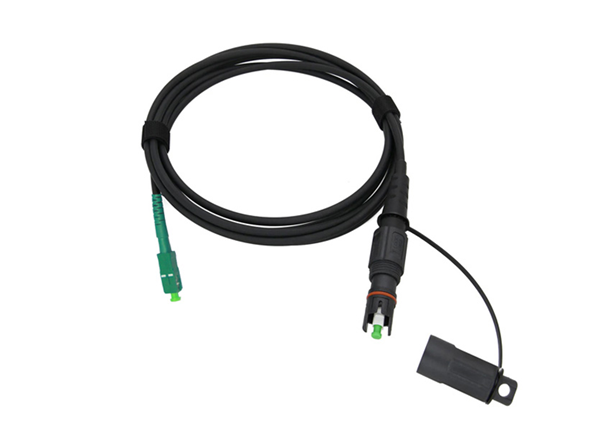

Product Image

5.0mm Pre-connectorized OptiTap to SC APC Simplex Armored Fiber Optic Jumper

Item Description

This kind of OptiTap jumpers produced by NEATEL company has been more than 10 years so far. We have those patents for control the marketing, which we are the only one directly source fiber optic manufacturer in China. This cable assembly for processing by ARTIC in China and we service for the globally international marketing. This factory pre-terminated flat drop jumper is the industry standard for existing FTTx installations, it provides a quick and easy "plug and play" connection from the pedestal or hand holes to the network terminals (ONTs) and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance. These factory-based assemblies are machine polished to ensure excellence in performance intermateability and durability. All jumpers are video inspected to ensure connector end-faces are free of defects and contamination. Insertion loss is tested using standard-based testing procedures since it is environmentally sealed. The 5.0mm Pre-connectorized OptiTap to SC APC Simplex Armored Fiber Optic Jumper is a specialized fiber optic patch cable designed for high-performance, rugged applications.

Features and Applications

✅ Connector Types:
✔ One end: OptiTap (a pre-connectorized, field-installable connector, typically used for fast deployment in FTTH/FTTx networks).
✔ Other end: SC APC (Angled Physical Contact for low reflectance, ideal for high-speed networks like GPON, CATV, and telecom).

✅ Cable Type:
✔ Simplex (single fiber, single-channel transmission).
✔ Armored (reinforced with a protective metal or Kevlar layer for crush resistance and durability in harsh environments).
✔ 5.0mm Diameter (thicker than standard 2.0mm or 3.0mm cables, offering better protection).

✅ Fiber Type:
✔ Typically Single-Mode (OS2) for long-distance, high-bandwidth applications.

✅ Applications:
✔ FTTH (Fiber-to-the-Home) deployments.
✔ Telecom and datacom networks.
✔ Military, industrial, and outdoor installations (due to armored protection).
✔ CATV and GPON systems (SC APC ensures low back reflection).

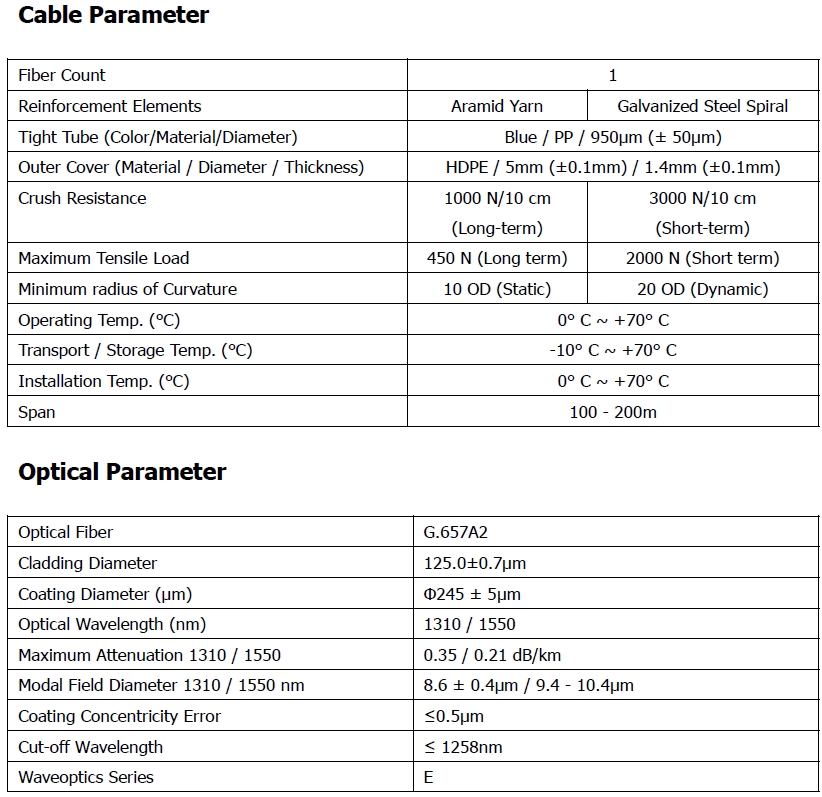

Technical Parameter
