DIN Rail Patch Pannel Fiber Splicing Terminal Box

Product Image
Item Description
Features and Applications
Technical Parameter

Product Image

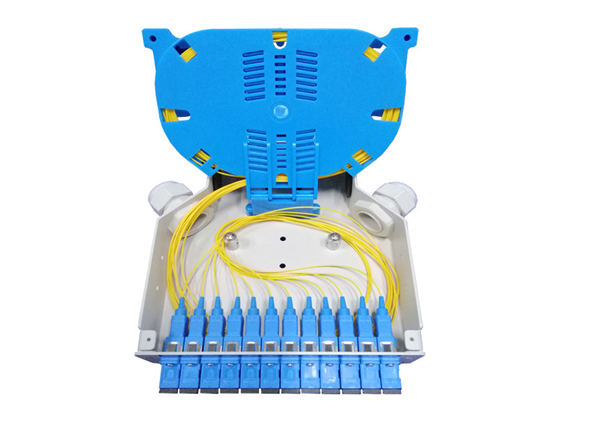

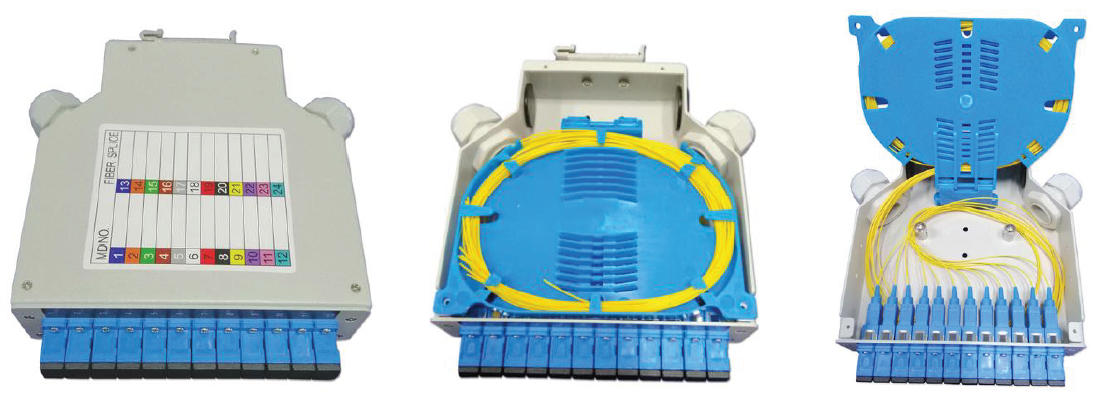

DIN Rail Patch Pannel Fiber Splicing Terminal Box

Item Description

DIN028 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use. DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features and Applications

✔ Reasonable design, aluminum box, light weight;
✔ Electrostatic powder painting, grey or black color;
✔ ABS plastic blue splice tray, rotatable design, compact structure;
✔ Max. 24 fibers capacity;
✔ FC, ST, LC, SC ... different adapter port available;
✔ DIN rail mounted application.

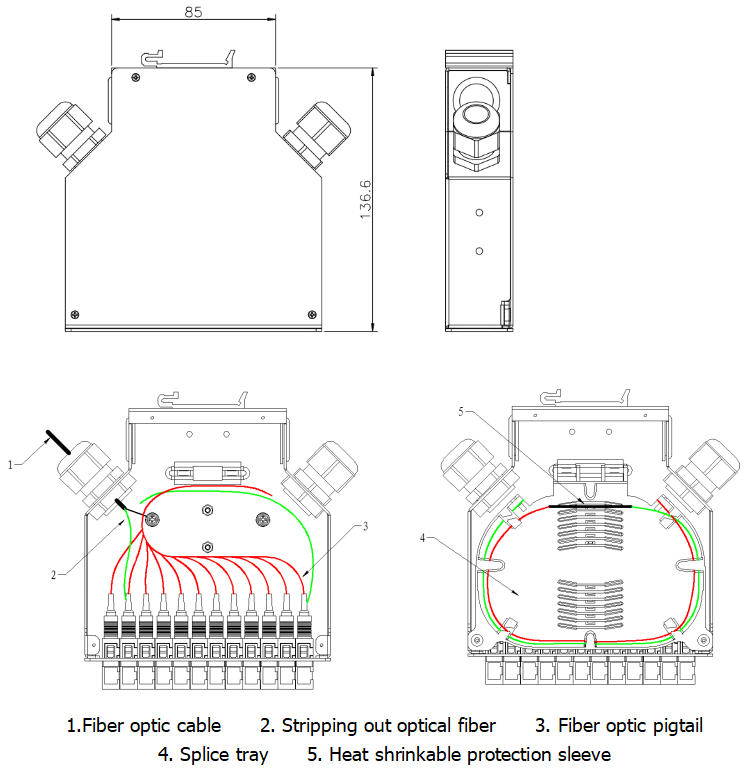

Technical Parameter
