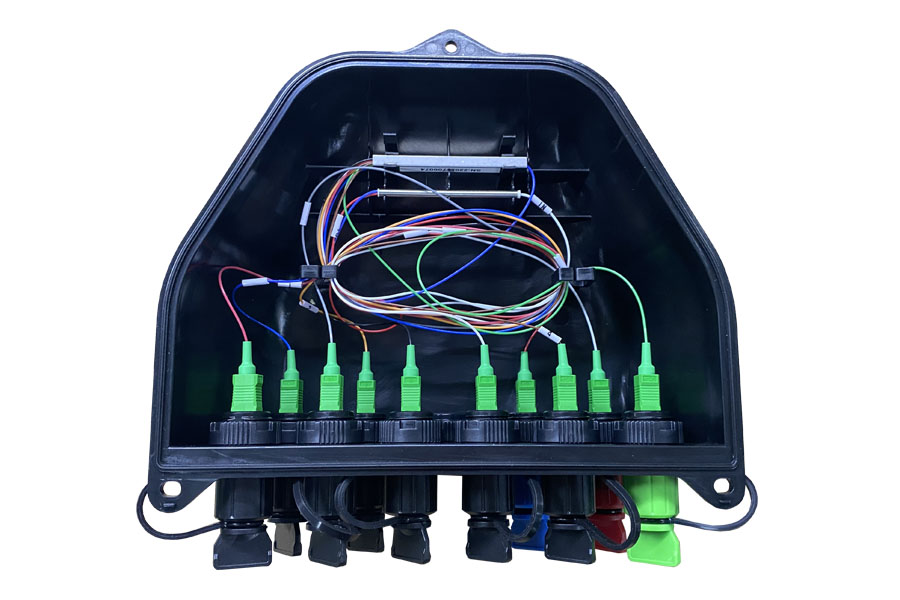

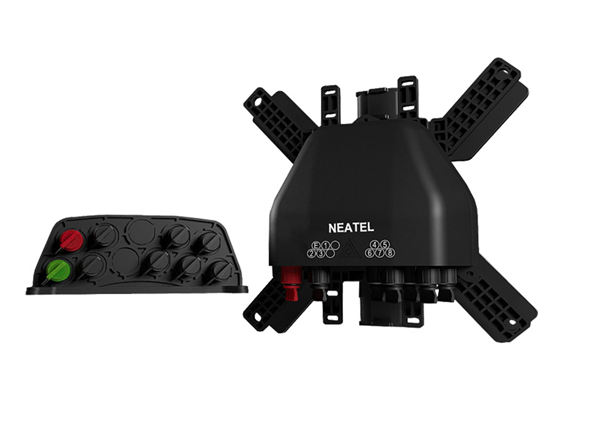

This FAT distribution box for outdoor application, it designed for connected with 3 different waterproof adapters, which are Corning OptiTap or Huawei FastConnect Mini SC/APC and Furukawa Slim solution. Fiber access terminal box (FAT) also named as optical termination box (OTB), is a compact fiber management box used for FTTH application. Fiber termination box (FTB) is widely used in FTTx cabling for both fiber cabling and cable management.

✔ High compatibility support harden adapter of OptiTap, Slim and FastConnect;
✔ Strong enough: working under 1000N pulling force long term;
✔ Installation on Wall/Pole/Aerial mounted, underground;
✔ Available with PLC fiber divide;
✔ Decreased angle surface and height make sure no connector interfering when operating;
✔ Cost effective: save 40% operating time and less manpower.

Application

✔ FTTH;
✔ FTTA;
✔ Trunk Cable Connecting.

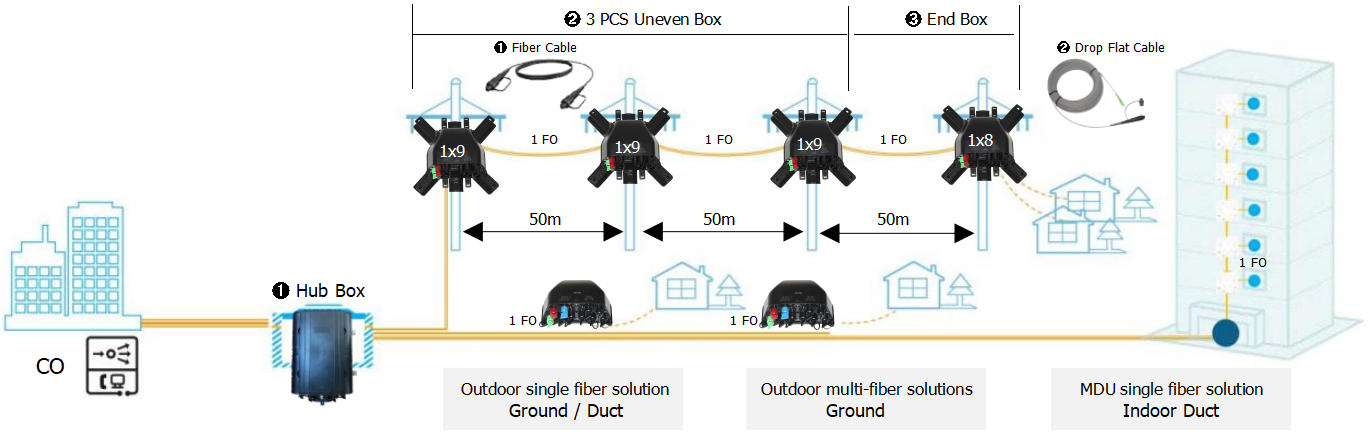

Application Scenario

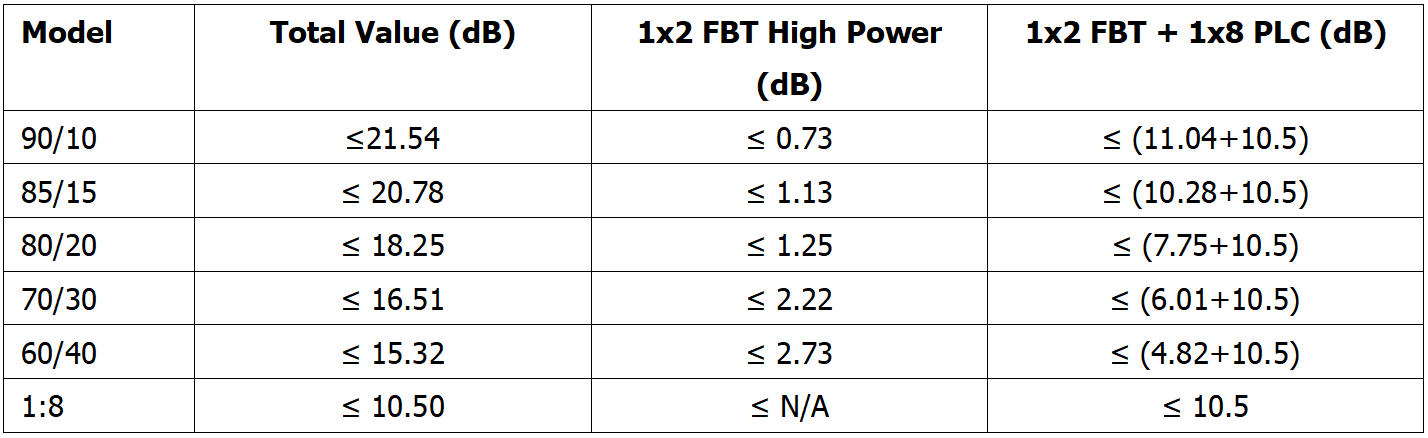

PLC Splitter Diagram

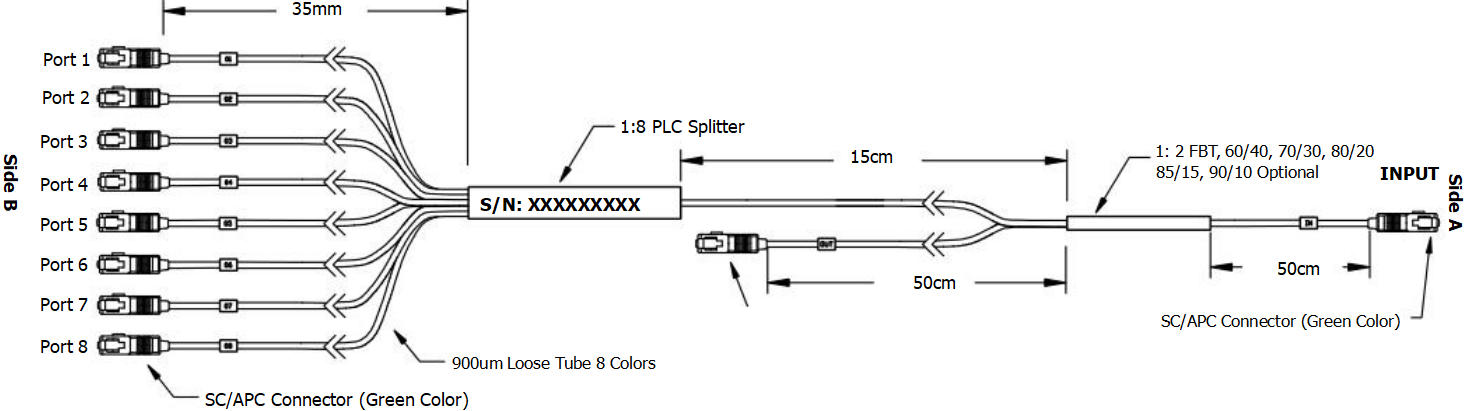

Drawing of PLC Splitter: 1 x 9 Solution
