Breakout AOC 1m (3ft) Ethernet 200GbE to 2 x 100GbE QSFP56 to Active Optical Splitter Cable

Product Image
Item Description
Features and Applications
Technical Parameter

Product Image

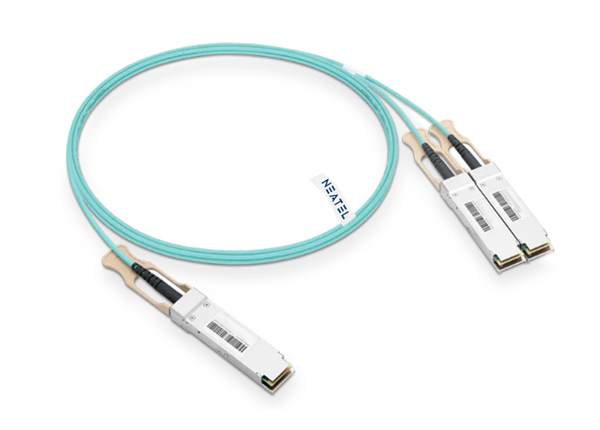

Breakout AOC 1m (3ft) Ethernet 200GbE to 2 x 100GbE QSFP56 to Active Optical Splitter Cable

Item Description

This kind of AOC is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser), 200GbE to 2 x 100GbE active optical breakout cable (AOC) designed for use in 200GbE Ethernet systems. NEATEL in China can offer cost-effective NVIDIA/Mellanox compatible 1 meter active optical splitter cables. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends. Each QSFP56 end of the cable contains an EEPROM providing product and status monitoring information, which can be read by the host system. It is compliant with SFF-8665 for the QSFP56 pluggable solution, being widely used in high-speed data centers, and HPC (High-Performance Computing). This cable is designed with QSFP56 connectors on both ends. A common question is whether the splitter end's 100GbE ports are compatible with older QSFP28 ports. They are not compatible due to different signal modulation technologies (PAM4 for QSFP56 vs. NRZ for QSFP28.)

Features and Applications

✔ 200GbE to 2x100GbE data rate;
✔ 4x 50Gb/s PAM4 modulation;
✔ Programmable Rx output amplitude and pre-emphasis;
✔ SFF-8665 compliant QSFP56 port;
✔ Single 3.3V power supply;
✔ 4.35W power dissipation (typ., 200G end);
✔ Bit Error Rate (BER) better than 1E-15 with Mellanox systems;
✔ Up to 30m length;
✔ Hot pluggable;
✔ RoHS compliant;
✔ IEEE 802.3 200GBASE-SR4 and 100GBASE-SR2 compliant;
✔ SFF-8636 compliant I2C management interface.

Application

✔ Data center spine-leaf architecture;
✔ High-performance computing (HPC) clusters;
✔ AI and machine learning training networks;
✔ Cloud infrastructure and storage area networks (SAN);
✔ 200G/100G InfiniBand and Ethernet switch-to-server interconnects.

Technical Parameter

Cable Mechanical Specifications

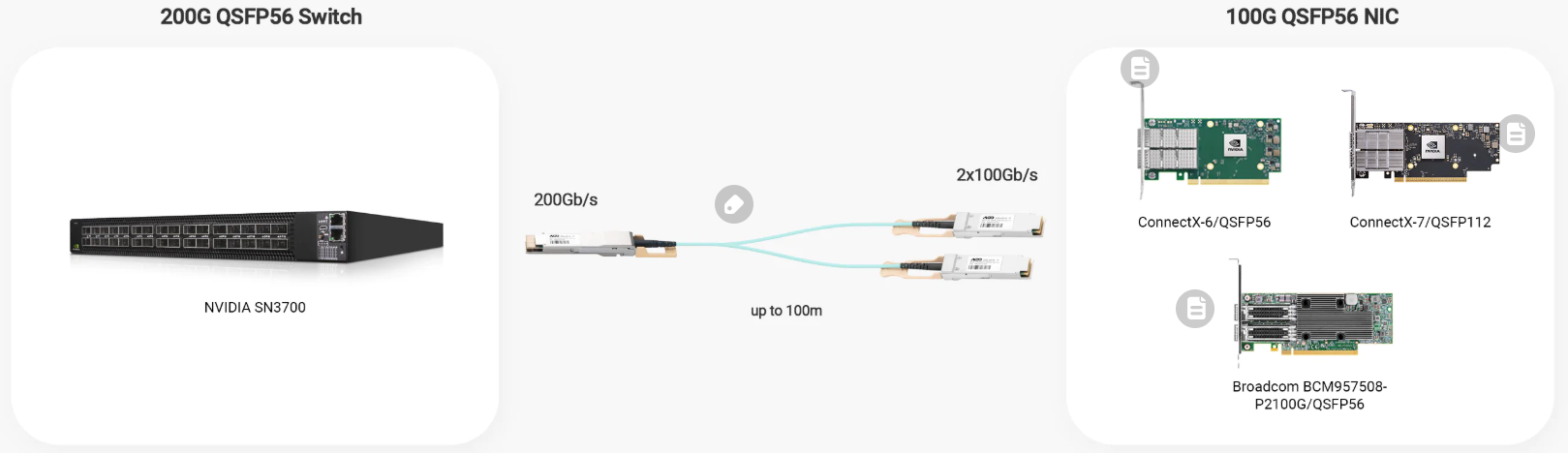

200G Switch to 100G QSFP56 NIC
