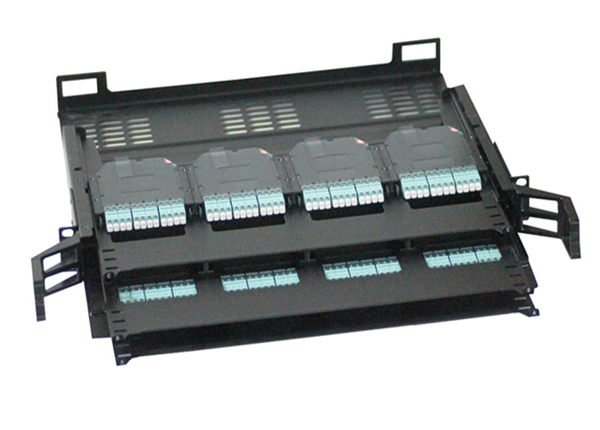

This high-density fiber patch panel provides 144-fiber termination capacity in a 1U 19" rack-mountable chassis, designed for seamless MPO-to-LC conversion in data centers, telecom hubs, and enterprise networks.

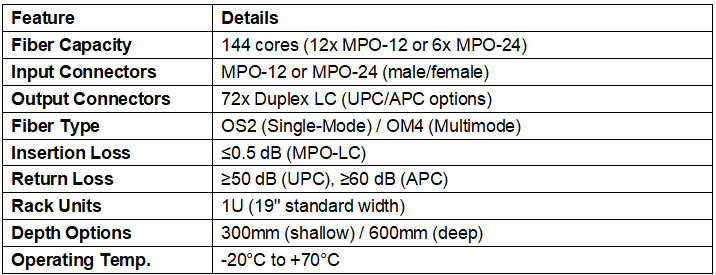

✅ 144-Fiber Capacity – Supports 12x MPO-12 or 6x MPO-24 inputs.
✅ MPO-to-LC Conversion – Breaks out into 72x Duplex LC ports.
✅ OS2 (Single-Mode) & OM4 (Multimode) Support – For 10G/40G/100G/400G networks.
✅ 1U 19" Standard Rack-Mountable – Space-saving for high-density environments.
✅ Polarity Managed (Type A/B/C Configurable).
✅ Low Insertion Loss – ≤0.5 dB (typical).
✅ Modular Sliding Trays – Easy access for maintenance.

Panel Configurations

✅ Option 1: MPO-12 Based (1:6 Breakout)
12x MPO-12 Inputs → 72x Duplex LC
Ideal for 100G-SR4/LR4, 40G-SR4
✅ Option 2: MPO-24 Based (1:12 Breakout)
6x MPO-24 Inputs → 72x Duplex LC
Optimized for 400G-DR4/FR4, 800G-DR8

Polarity Management

Type A (Straight-Through) – Fiber 1→1, 2→2, etc.
Type B (Reversed) – Fiber 1→12, 2→11, etc.
Type C (Pair-Flipped) – Fiber 1→2, 2→1, etc.

Why Choose This Patch Panel?

✅ High Density – 144 fibers in just 1U.
✅ Future-Ready – Supports 400G/800G upgrades.
✅ Flexible Deployment – Works with MPO-12 or MPO-24 trunks.
✅ Easy Maintenance – Slide-out trays for quick access.

Installation Notes

✅ Verify Polarity (Type A/B/C) before installation.
✅ Clean MPO Connectors – Use MPO cleaning tools.
✅ Maintain Bend Radius – ≥30mm for fibers.
✅ Test with OTDR/OLTS – Ensure low insertion loss.

Compatible Equipment

✅ MPO-12/24 Trunk Cables (OS2/OM4).
✅ 100G/400G Transceivers (SR4, DR4, FR4).
✅ High-Density Rack Enclosures.

Typical Applications

✅ Data Center Spine-Leaf Networks.
✅ 5G Fronthaul/Midhaul Aggregation.
✅ Cloud & Enterprise Core Distribution.
✅ High-Density Fiber Distribution Frames.
