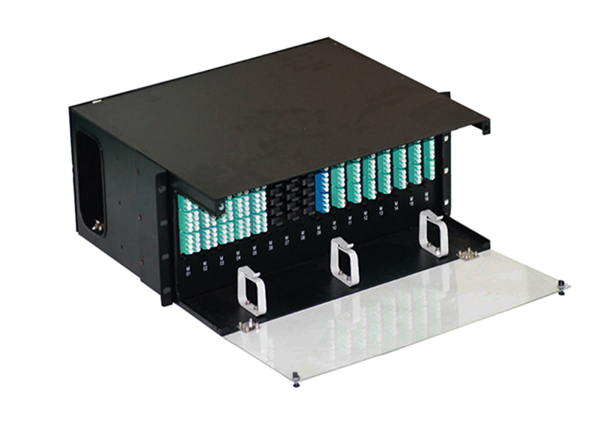

This ultra-high-density fiber patch panel from NEATEL provides 384-fiber termination capacity in a 4U 19" rack mountable chassis, designed for data centers, telecom hubs, and enterprise networks. It supports MPO-to-LC conversion for flexible connectivity between high-speed backbone links (40G/100G/400G) and legacy LC-based equipment.

Why Choose This Patch Panel?

✅ Highest Density – 384 fibers in just 4U.
✅ Future-Proof – Supports 400G/800G migration.
✅ Flexible Deployment – Works with MPO-12 or MPO-24 trunks.
✅ Easy Maintenance – Modular sliding trays.

Panel Configurations

✅ Option 1: MPO-12 Based (1:6 Breakout).
✅ 32x MPO-12 Inputs → 192x Duplex LC.
✅ Supports 100G-SR4/LR4, 40G-SR4.

✅ Option 2: MPO-24 Based (1:12 Breakout).
✅ 16x MPO-24 Inputs → 192x Duplex LC.
✅ Ideal for 400G-DR4/FR4, 800G-DR8.

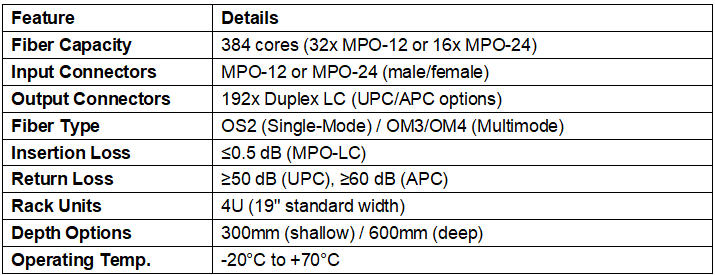

Keyed Characteristics

✅ 384-Fiber Capacity – Supports 32x MPO-12 or 16x MPO-24 inputs.
✅ MPO-to-LC Conversion – Breaks out into 192x Duplex LC ports.
✅ OS2 (Single-Mode) & OM3/OM4 (Multimode) Support.
✅ 4U 19" Standard Rack-Mountable – Optimized for high-density environments.
✅ Polarity Managed (Type A/B/C Configurable).
✅ Low Insertion Loss – ≤0.5 dB (typical).
✅ Modular Design – Slide-out trays for easy maintenance.

Application

✅ Hyperscale Data Centers (Spine-Leaf Architecture).
✅ Telecom Central Offices (5G Fronthaul/Midhaul).
✅ Cloud Service Provider Networks.
✅ Enterprise Core Distribution.

Need Help Configuring Your 384-Fiber Patch Panel?

Specify:
✅ MPO-12 or MPO-24 Input?
✅ Single-Mode (OS2) or Multimode (OM3/OM4)?
✅ UPC or APC Polish?
