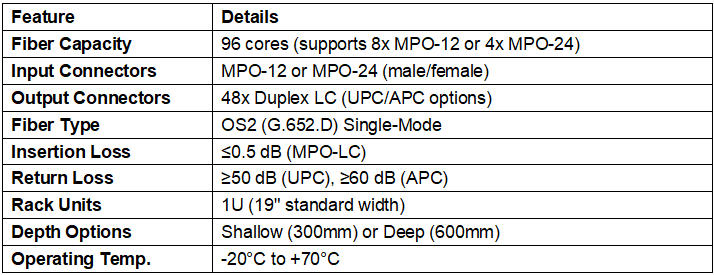

✔ 96-Fiber Capacity – Supports 8x MPO-12 or 4x MPO-24 inputs.
✔ MPO-to-LC Conversion – Breaks out into 48x Duplex LC ports.
✔ OS2 Single-Mode Optimized – For long-haul 100G/400G applications.
✔ 1U 19" Rack-Mountable – Saves space in high-density environments.
✔ Polarity Managed – Type A/B/C configurations available.
✔ Low Insertion Loss – ≤0.5 dB typical.
✔ Sliding Tray Design – Easy access for maintenance.
🔹 Typical Applications
✔ Data Center Interconnects (DCI).
✔ FTTH Central Office Termination.
✔ 5G Fronthaul/Midhaul Aggregation.
✔ Cloud Networking Infrastructure.
🔹 Panel Configurations
✔ Option 1: MPO-12 Based
✔ 8x MPO-12 Inputs → 48x Duplex LC (1:6 breakout).
✔ Supports 100G-LR4/400G-DR4 migration.
✔ Option 2: MPO-24 Based.
✔ 4x MPO-24 Inputs → 48x Duplex LC (1:12 breakout).
✔ Ideal for 400G-FR4/800G-DR8 deployments.
🔹 Polarity Management
✔ Type A (Straight-Through).
✔ Type B (Reversed).
✔ Type C (Pair-Flipped).
🔹 Why Choose This Patch Panel?
✔ Space Efficiency – 96 fibers in just 1U.
✔ Future-Proof – Ready for 400G/800G upgrades.
✔ Flexible Deployment – Works with MPO-12 or MPO-24 trunks.
✔ Easy Maintenance – Slide-out trays for quick access.
🔹 Installation Notes
✔ Plan Polarity before installation (Type A/B/C).
✔ Use MPO Cleaning Tools – Prevent contamination.
✔ Proper Bend Radius – Maintain ≥30mm for fibers.
✔ Ground Armored Cables (if applicable).
🔹 Compatible Equipment
✔ MPO-12/24 Trunk Cables (OS2 single-mode).
✔ 100G-LR4/400G-DR4 Transceivers.
✔ LGX-Compatible Adapter Plates.
