Item Description

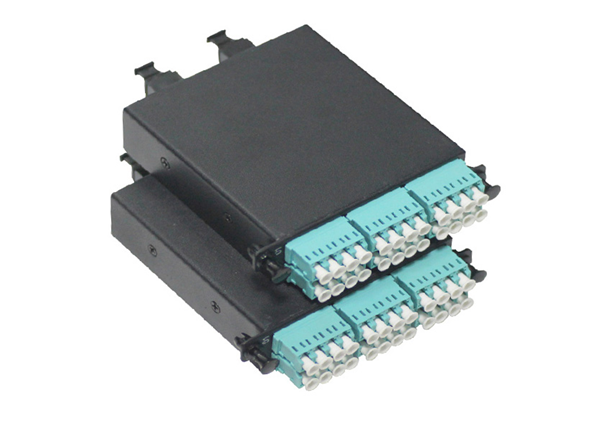

The 24FO MTP®/MPO to LC Fiber Optical Cassette Module is a high-density, pre-terminated fiber optic solution designed for efficient parallel optical connectivity in data centers, enterprise networks, and high-speed telecom applications. It converts 24-fiber MTP®/MPO trunk cables into 12 LC duplex ports, enabling flexible and scalable fiber patching.
Features and Applications
✅ Connector Configuration
✔ Input: 24-fiber MTP®/MPO (dual-row, male or female).
✔ Output: 12x LC duplex (24 fibers total).
✔ Polarity Options:
✔ Type A (Straight-through).
✔ Type B (Reversed polarity for 40G/100G SR4/PSM4).
✔ Type C (Pair flipped for cross-connect).
✅ Fiber Type & Performance
✔ Compatible with OM3, OM4, or OM5 multimode fiber (50/125µm).
✔ OM3: 2000 MHz·km @ 850nm, 500 MHz·km @ 1300nm.
✔ OM4: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm.
✔ OM5 (WBMMF): Optimized for SWDM (850-953nm).
✔ Single-mode (OS2) versions available (for long-haul applications).
✅ Optical Performance
✔ Insertion Loss (IL): ≤0.5 dB per LC connection (typical).
✔ Return Loss (RL): ≥20 dB (multimode), ≥50 dB (single-mode).
✔ Low PDL (Polarization Dependent Loss): <0.1 dB.
✅ Mechanical & Environmental Durability
✔ 500+ mating cycles (MTP®/MPO & LC connectors).
✔ Operating Temperature: -20°C to +70°C.
✔ Humidity Resistance: 85% RH (non-condensing).
✔ Flame Rating: UL94 V-0 (optional).
✅ Compatibility & Applications
✔ High-density 1U/2U fiber patch panels.
✔ 40G/100G/400G Ethernet (QSFP+, QSFP28, OSFP).
✔ Data center spine-leaf architectures.
✔ SAN/NAS storage networks.
✔ Cloud & hyperscale deployments.
