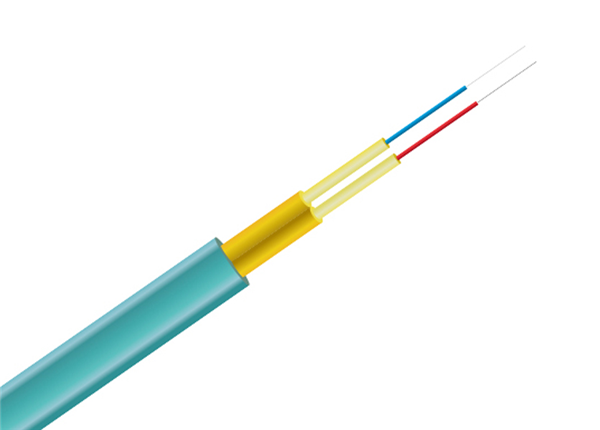

NEATEL's OM3 Duplex Flat Fiber Cable is a high-performance laser-optimized 50/125μm multimode fiber cable designed for 10G/40G/100G high-speed data transmission in modern data centers, enterprise networks, and storage area networks (SANs). Its flat, ultra-slim design allows for space-saving, flexible routing in high-density cabling environments. This cable consists of two parallel OM3 fibers (duplex) in a single flat jacket, supporting full-duplex communication with superior bandwidth capabilities. The aqua-colored jacket distinguishes it as an OM3 fiber optimized for 850nm VCSEL laser sources.

✔ OM3 duplex flat fiber cable enables up to 10 Gbps high – speed transfer over longer LAN distances;
✔ Optimized for 850 – nm VCSELs, it ensures efficient light coupling and less signal loss;
✔ OM3 cable has low attenuation, keeping signals stable over distance;
✔ Its duplex design allows 2 – way data transfer, doubling capacity;
✔ The flexible flat cable is easy to route in tight spots and simplifies cable management;
✔ Supports 10G Ethernet up to 300m;
✔ Supports 40G/100G Ethernet up to 100m (with MPO breakout cables);
✔ Laser-optimized 50/125μm fiber for superior bandwidth (2000 MHz·km @850nm);
✔ Tangle-free flat ribbon structure for clean cable management;
✔ Jackets: PVC, LSZH, Plenum-rated.

Application

✔ CCTV and security systems;
✔ Enterprise network & Datacenter;
✔ Smart buildings;
✔ Fiber Patch Cord & Pigtails;
✔ Campus Network.
