More and more home devices to LAN, RTV, CCTV installations are made with a view to the RACK system, so that their installation is aesthetically pleasing, and that devices are protected against accidental mechanical damages. The NT1298 cabinet designed by NEATEL is suitable for mounting all sorts of devices in standard 19" rack housings. Ideal solution for installing DVRs, power units, splitters, headends, network devices, etc. Inside the cabinet can be also place the devices that are not in standard RACK-19" housings, for example DVRs, multiswitches, RTV-SAT amplifiers, modulators. For this purpose the user should mount additional shelf/shelves available for RACK cabinet. The RACK cabinet has many openings ensuring adequate air circulation. Additionally, it is possible to install fans to increase the ventilation. Wall mounting with: mounting bracket for hanging cabinets A19-AL (not included in the kit) or hangers (not included).

✔ Frame: Welded frame, stable structure with precise craftsmanship.
✔ Double Section, compatible with 19" standard equipment.
✔ Front Door: High strength toughened glass front door with over 180 turning degree.
✔ Side Panel: Removable side panel, easy to install and maintain (lock optional).
✔ Cable Entry on the top cover and bottom panel with knock-out plate.
✔ L-Shaped Mounting Profile, easy to adjustable on the mounting rail.
✔ Fan cutout on the top cover ,easy to install fan.
✔ Wall mounting or floor standing installation.
✔ Material: SPCC Cold Rolled Steel.

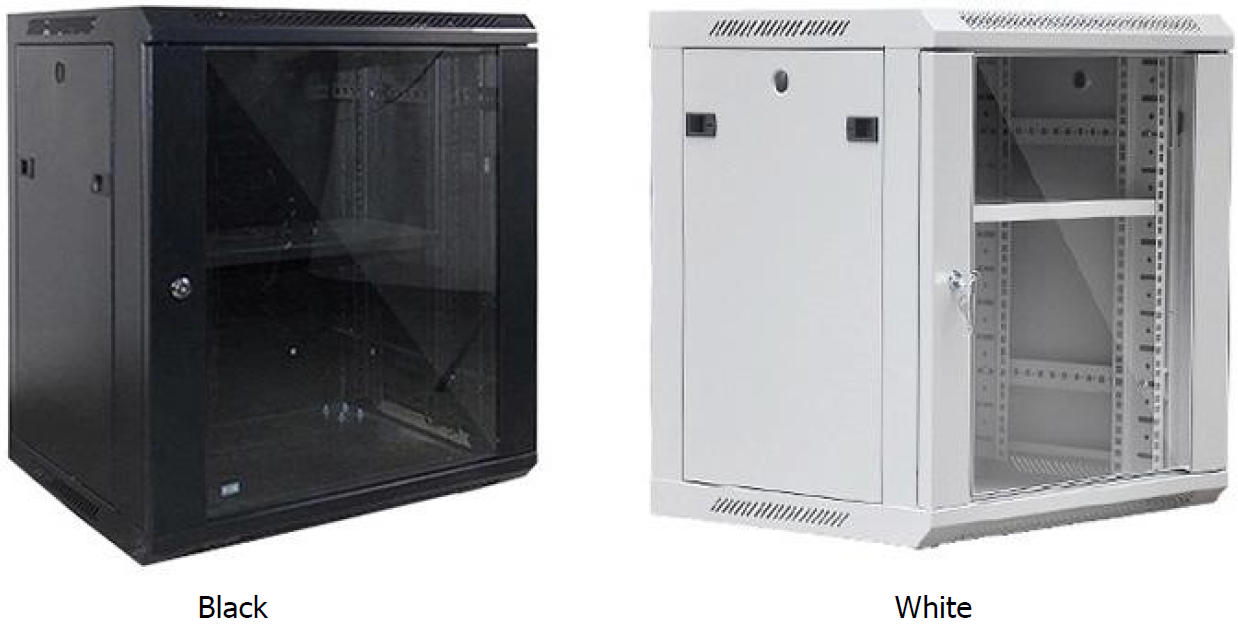

✔ Color:Ral 7035 Grey /Ral 9004 Black.

Application

✔ Communications;
✔ Networks;
✔ Industrial control;
✔ Building automation.

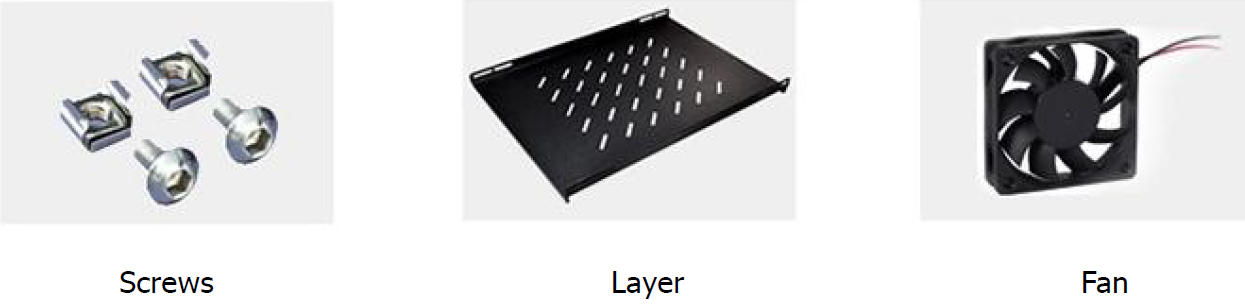

Standard Attached Accessories
