12/24 Fiber Optic Singlemode SC/APC - LC/UPC Trunk Cable for Bone Connection
Item Description
This cable is factory made, quality controlled fibre optic assembly is specified for short internal optical links. The 2.0mm presentation lends itself to installation within a patch panel, wall box or Optical Distribution Frame (ODF). Crush resistant protective tubing assures secure transportation and installation. The high strength pulling element allows fast, safe and effective pulling. The overall assembly and packing are light and compact, reducing transport cost and storage space. Installation waste is also reduced. A unique link loss certificate accompanies all multifiber assemblies.
Features and Applications
√ Robust crush resistant protection tube;
√ High tensile strength pulling element;
√ Economical, light and compact assembly;
√ Low waste packaging;
√ User friendly link loss test certificate;
√ Installation guide supplied.

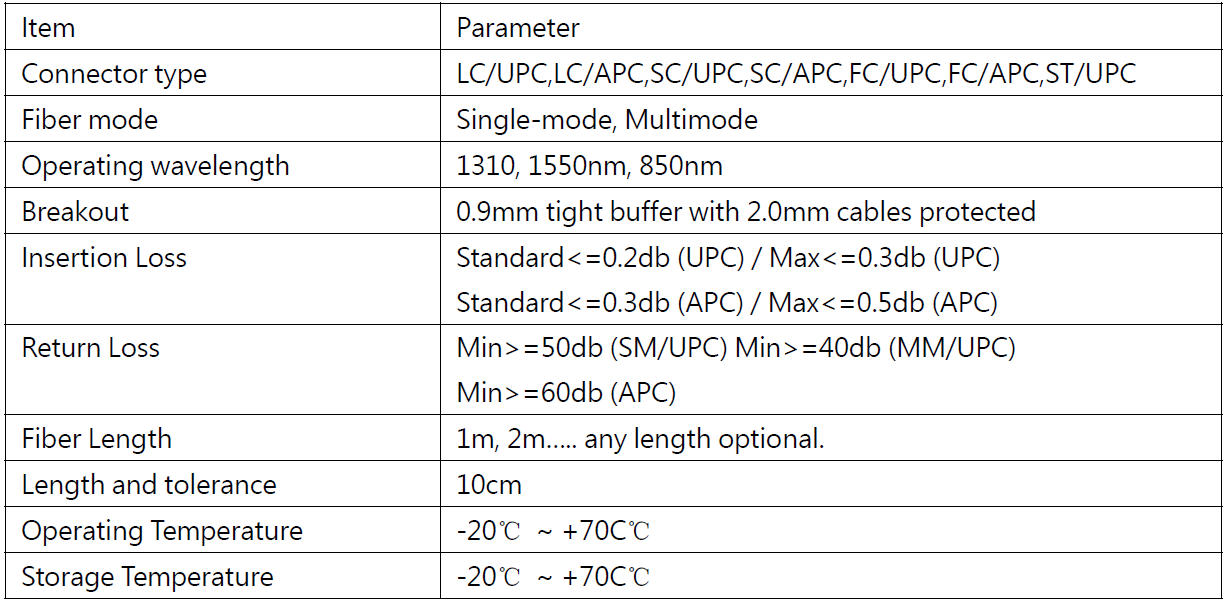

Technical Parameter

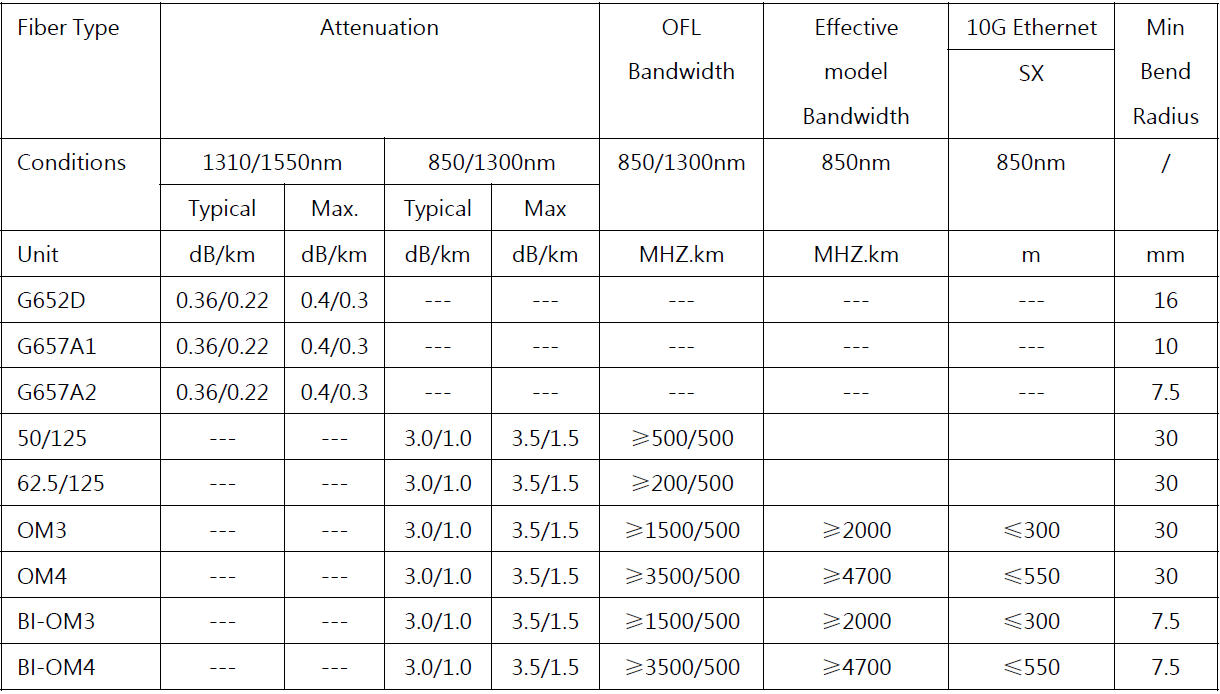

√ Available in OM1, OM2, OM3, OM4 (ISO/IEC) and G.652D(OS1/OS2), G657A1 fibre types;
√ Available with SC, LC, FC, ST, and E2000 connector types;

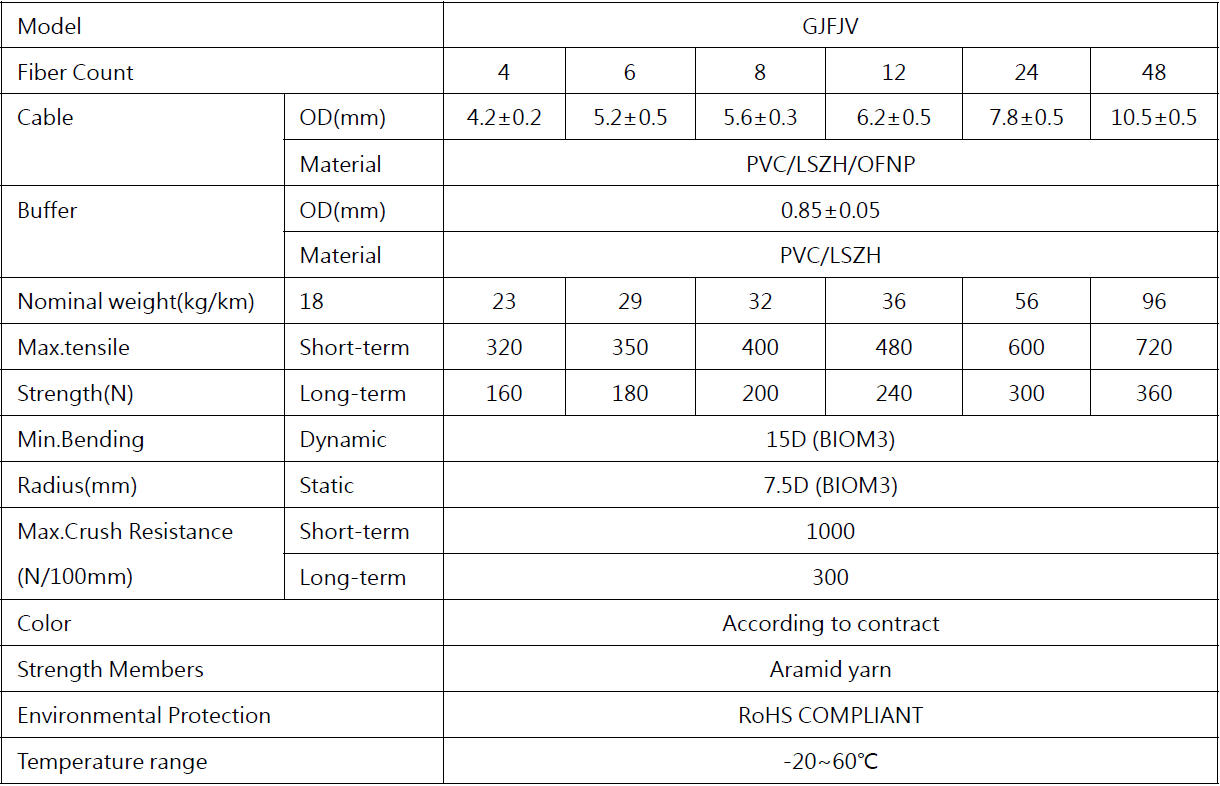

√ 2 - 24 core tight buffer cable with standard connectivity;
√ Fast installation plug and play system;
√ No splicing or connector termination required.
