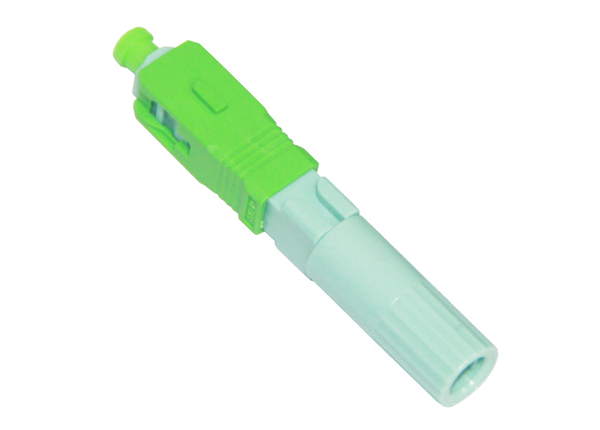

This kind of Field Assembly Optical Connector from NEATEL is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 3.0mm or 5.0mm round jacket cable.

✔ Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
✔ Double V-slot structure design, fiber optic docking is stable and reliable;
✔ The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
✔ Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.

Application

✔ All fiber interconnection;
✔ Telecom Distribution and Local Area Networks;
✔ FTTH and FTTx;
✔ Passive optical networks [ATM, WDM, Ethernet];
✔ Broadband, Cable TV(CATV).
