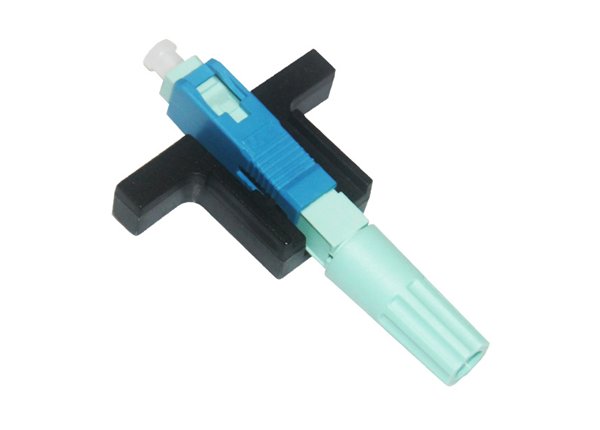

This kind of SC Connector from NEATEL is used for optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um, 3.0mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.

✔ No epoxy or polishing required;
✔ Quick and easy fiber termination in the field;
✔ Eliminates cable excess length and pigtail splice storage;
✔ Cost effective;
✔ FTTH project usable;
✔ Field installable;
✔ Insert loss less than 0.3dB Max 0.5dB;
✔ Metal V-shape cavity work well in high and low temperature;
✔ Installation less than 1 minutes;
✔ Reliable and superior optical performance;
✔ Cable Tensile test complies with Telcordia GR-326-CORE.

Application

✔ Connections at the desk for LAN environment;
✔ Optical access network;
✔ Fiber to the Subscriber (FTTX) applications;
✔ Patch panels;
✔ Direct equipment termination.

Relevant Solution

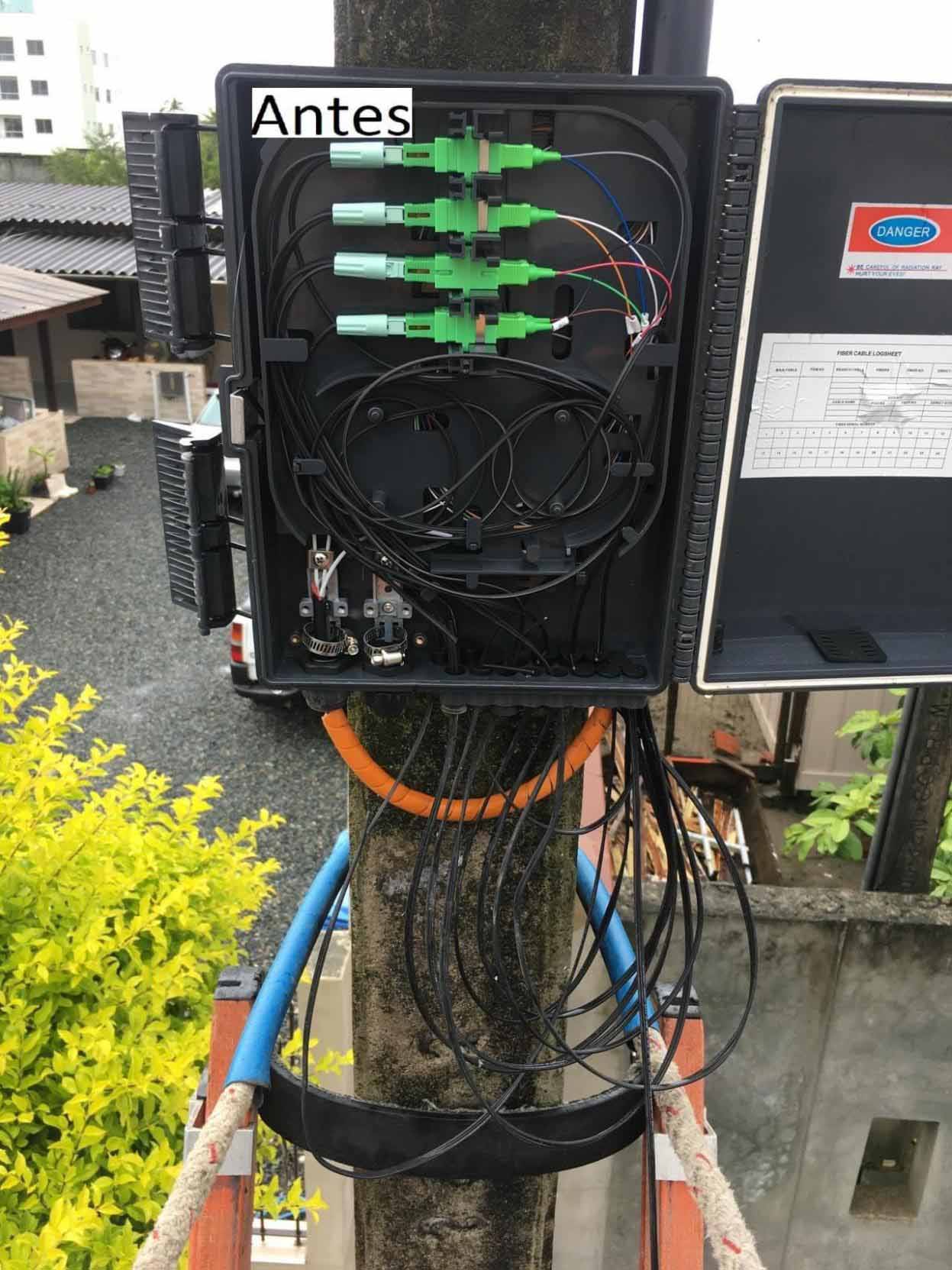

✔ Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
✔ With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
✔ Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
