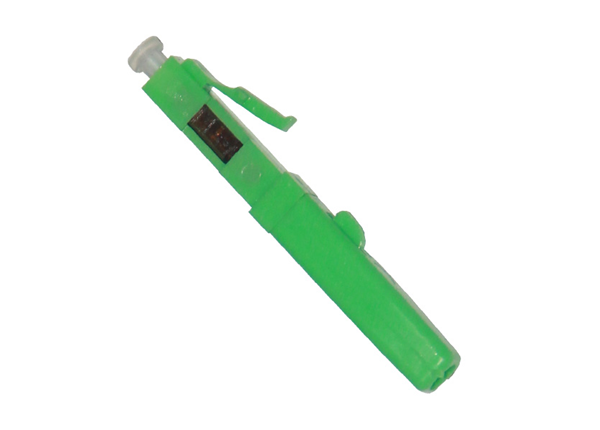

The NEATEL this kind of LC Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The LC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.

✔ Comply with TIA/EIA and IEC;
✔ Quick and easy fiber termination;
✔ RoHS compliant;
✔ Reusable termination capability [Up to 10 times];
✔ Easy to deploy fiber solution;
✔ High success rate of connections;
✔ Low Insertion & Back Reflection;
✔ No special tools required.

Application

✔ All fiber interconnection;
✔ Telecom Distribution and Local Area Networks;
✔ FTTH and FTTx;
✔ Passive optical networks [ATM, WDM, Ethernet];
✔ Broadband, Cable TV (CATV).
