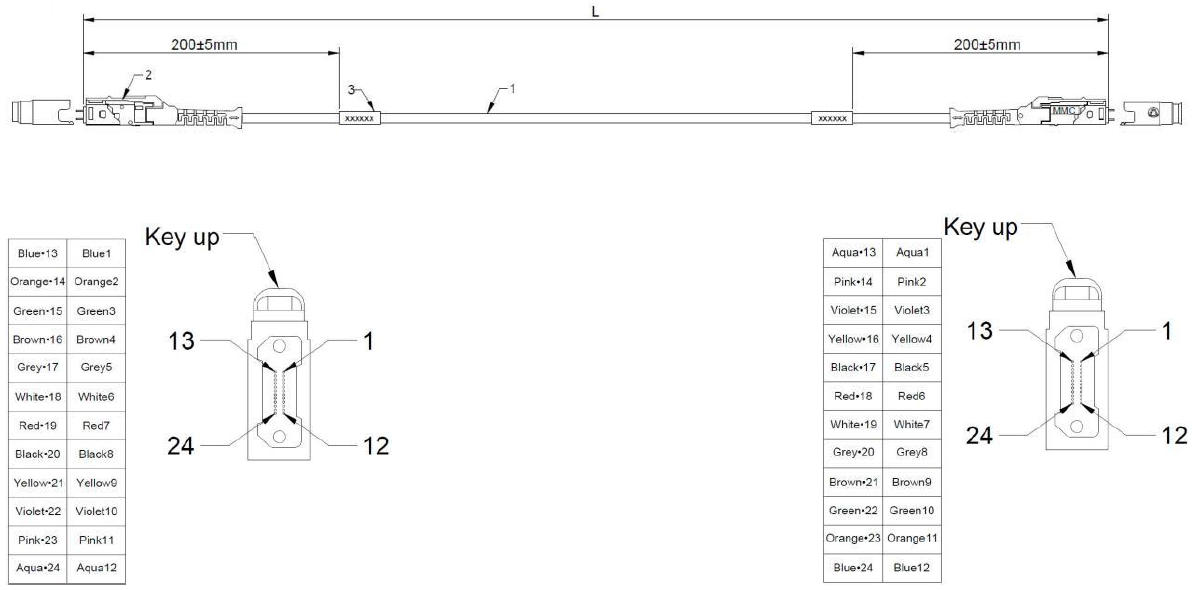

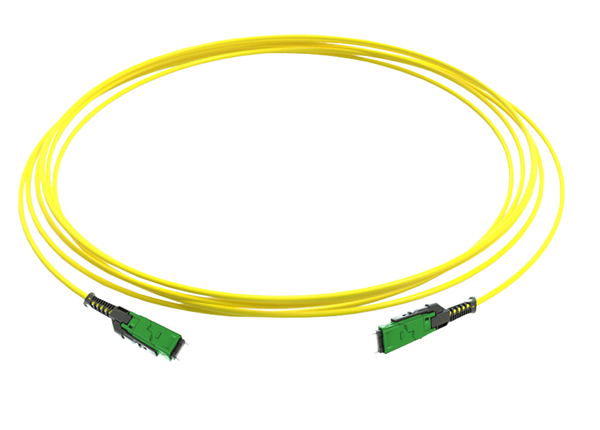

NEATEL's MMC24 jumpers feature US Conec’s new, high performance Very Small Form Factor (VSFF) multi-fiber optical connector. Connectors offer 3X the density of MTP (MPO), and can be used for single-mode and multimode applications. Individual connector access in the most dense connector environments is easily accomplished using DirectConec ™ push-pull boot technology. Cable jackets are available in any color and length. Jumpers are manufactured with female connectors on both ends, and wired in MMC standard Jumper polarity.

✔ TIA/EIA-455-21A.
✔ TIA/EIA 568-B.3.

Application

✔ 400G/800G data center interconnects and high-density switch connections;
✔ Server-to-server links in spine-leaf network architectures;
✔ Fiber backbone upgrades in hyperscale cloud environments;
✔ Test and measurement setups requiring compact dual-fiber connections;
✔ High-performance computing and AI cluster networks;
✔ Rack-level cabling in limited-space environments.
