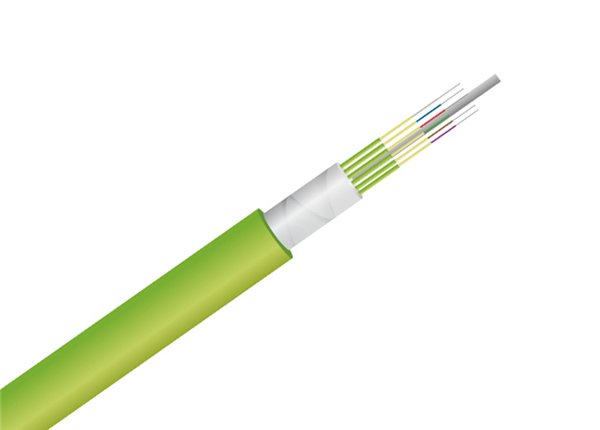

Multi-Mode OM5 Breakout Indoor Fiber Cable
Item Description
NEATEL's OM5 Breakout Indoor Fiber Cable represents the latest advancement in multimode fiber technology, delivering
extended wavelength support (850-953nm) and exceptional bandwidth performance (4700 MHz·km at 850nm, 2470
MHz·km at 953nm). Designed for modern high-density networks, this cable supports 40G, 100G, and emerging 400G
applications with transmission distances up to 150m (400G), 300m (100G SWDM4), and 440m (40G).
Features and Applications

✔ Enables 100G transmission up to 300m (SWDM4) and 40G up to 440m;
✔ Breakout design allows direct termination without breakout modules;
✔ Ideal for high-density data center deployments with 40% better density than traditional cabling;
✔ OM5 50/125μm Wideband Multimode Fiber (WBMMF);
✔ Supports SWDM for cost-effective 400G migration;
✔ Multiple individually reinforced sub-cables ,2.0mm or 3.0mm diameter;
✔ Available in 4 to 60 fibers.

Application

✔ Data Centers;
✔ LAN/WAN Networks;
✔ Security Systems;
✔ Telecommunications;
✔ Industrial Networks.

Technical Parameter
