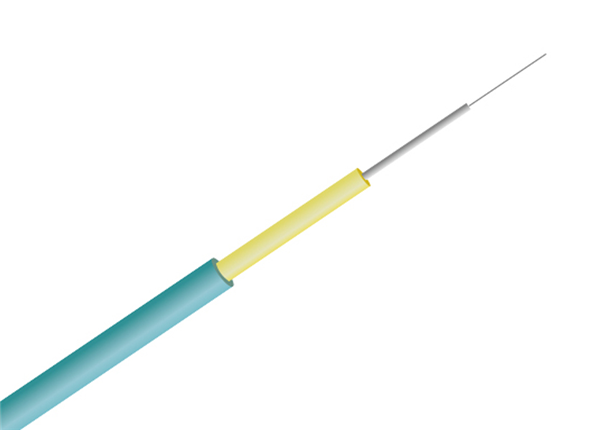

NEATEL's OM3 50/125μm multimode simplex fiber cable delivers optimized performance for high-bandwidth applications, supporting 10 Gigabit Ethernet up to 300 meters and 40/100G up to 100 meters. The laser-optimized fiber features an aqua-colored jacket for easy identification and meets strict TIA/EIA-492AAAC and ISO/IEC 11801 OM3 standards.

✔ Lower cost per gigabit than singlemode for short-reach applications;
✔ Superior performance compared to OM1/OM2 fibers;
✔ Plug-and-play compatibility with existing 850nm equipment;
✔ Available with various flame-rated jackets for different installation environments;
✔ Laser-optimized for 850nm VCSEL sources;
✔ 10G/40G/100G ready with 2000MHz·km bandwidth;
✔ Tight-buffered design for easy termination;
✔ LSZH/PVC options for different environments;
✔ Bend-insensitive with 10× diameter bend radius;
✔ Backward compatible with OM1/OM2 systems.

Application

✔ Telecommunications (patch cords, backbones);
✔ Medical & Industrial Equipment (sensors, imaging);
✔ Military & Aerospace (avionics, secure comms);
✔ Broadcast & CATV (single-direction signal transmission).
