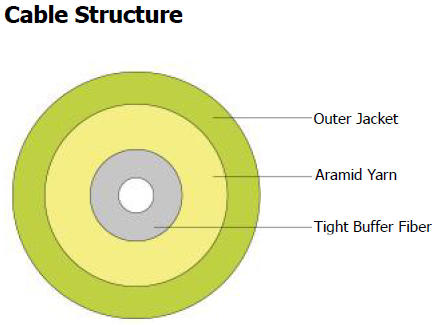

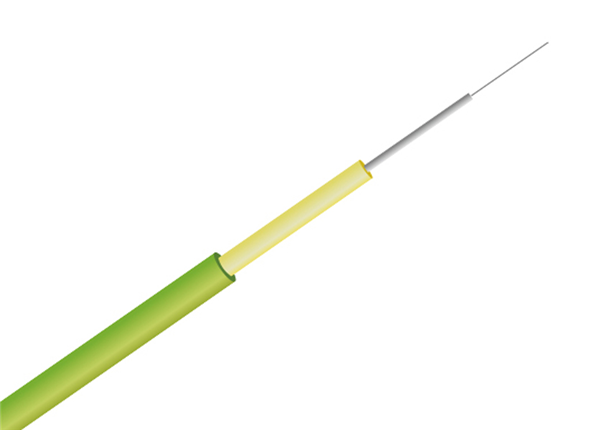

NEATEL's Our OM5 simplex round fiber optic cable features wideband multimode fiber (WBMMF) technology with a distinctive lime green jacket for easy identification. The 50/125μm fiber utilizes optimized glass composition to support shortwave wavelength division multiplexing (SWDM) from 850-950nm. The tight-buffered construction with aramid yarn reinforcement provides excellent durability while maintaining flexibility for easy installation in high-density environments.

✔ 150m for 40/100G, 100m for 400G applications;
✔ Carries 4 wavelengths on single fiber (vs traditional MMF);
✔ Fully interoperable with OM3/OM4 systems;
✔ 7.5×diameter bend radius for tight installations;
✔ Future-proof migration path to 400G+;
✔ Supports SWDM (850-950nm) for multi-wavelength transmission;
✔ 4700MHz·km@850nm enables 400G Ethernet;
✔ Supports 40/100G up to 150m, 400G up to 100m;
✔ Carries 4×more data than standard OM4 (using SWDM);
✔ Works with existing OM3/OM4 equipment;
✔ Distinctive Lime Jacket;
✔ Optimized for both 850nm and 950nm operation.

Application

✔ Telecommunications (patch cords, backbones);
✔ Medical & Industrial Equipment (sensors, imaging);
✔ Military & Aerospace (avionics, secure comms);
✔ Broadcast & CATV (single-direction signal transmission).
