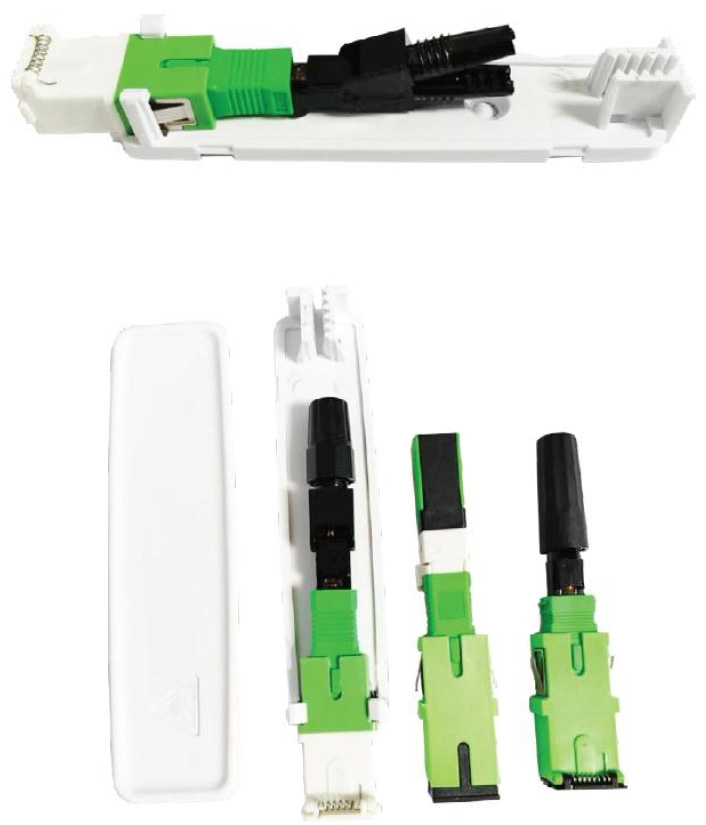

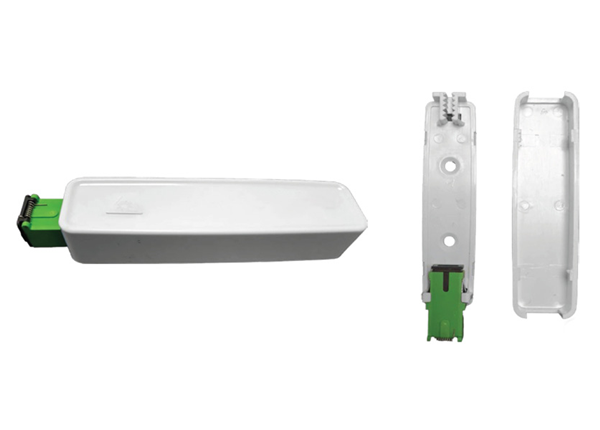

Ability to carry out the termination of compact optical cables through connectorization in the field. Anchoring cables with versatile retention system that allows compatibility with drop cables.

✅ Compact dimensional; Easy handling;
✅ Fixing to the wall by screw or double-sided tape;
✅ Can be installed on any flat verticalsurface; Symmetrical cover that allows fitting on both sides;
✅ Compatibility with: ✔ Fit to cable 2x1.6mm, 3x2mm and circular 3mm drop cables; 0.9mm diameter fiber for Invisilight applications.
✅ Maxium input: Maximum diameter of the input cable (mm) is 3.0mm;
✅ Maxium output: Output cable diameter (mm) is 3.0mm;
✅ Adapter: SC/APC Adapter;
* Simplex without shutter;
* Simplex with shutter;
✅ Material: PC+ABS;
✅ IP Rate: IP30;
✅ IK Rate: IK09.

Application

✅ FTTx networks (FTTH, FTTD);
✅ Enterprise/Access networks.
