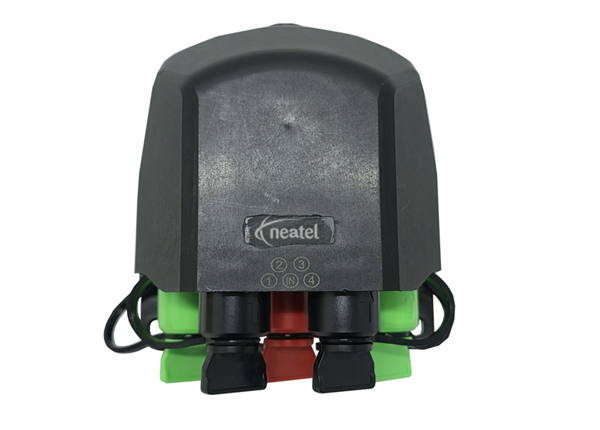

5 Ports Non-open Pre-connectorized Fiber Access Terminal NAP Box

Item Description

This FAT distribution box for outdoor scenario application, it designed for connected with multiple branded waterproof harden adapters, which are Corning OptiTap or Huawei FastConnect Mini, YOFC OneClick and Furukawa Slim solution. Fiber access terminal box (FAT) also named as optical termination box (OTB), is a compact fiber management box used for FTTH application. Fiber termination box (FTB) is widely used in FTTx cabling for both fiber cabling and cable management.

Features and Applications

✔ High compatibility support harden adapter of OptiTap, OneClick, Slim and FastConnect;
✔ Strong enough: working under 1000N pulling force long term;
✔ Installation on Wall / Pole / Aerial mounted, underground;

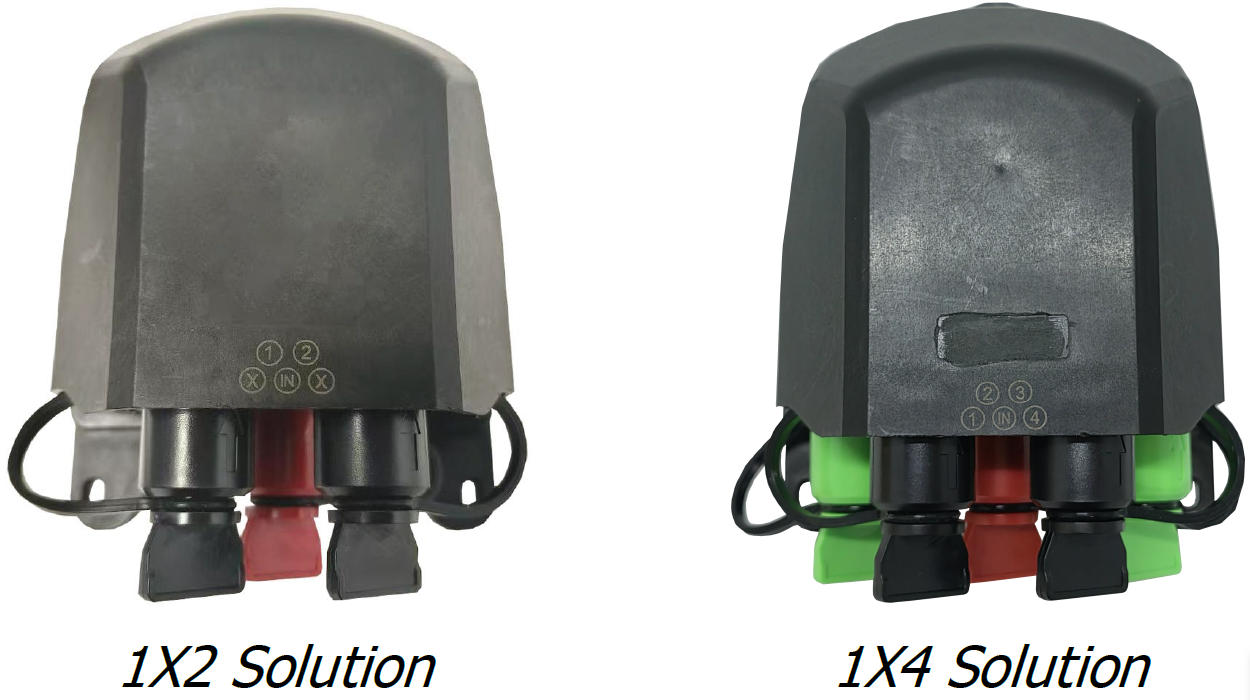

✔ Available with PLC fiber divide;
✔ Decreased angle surface and height make sure no connector interfering when operating;
✔ Cost effective: save 40% operating time and less manpower.

Application

✔ FTTH;
✔ FTTA;
✔ Trunk Cable Connecting.

Installation

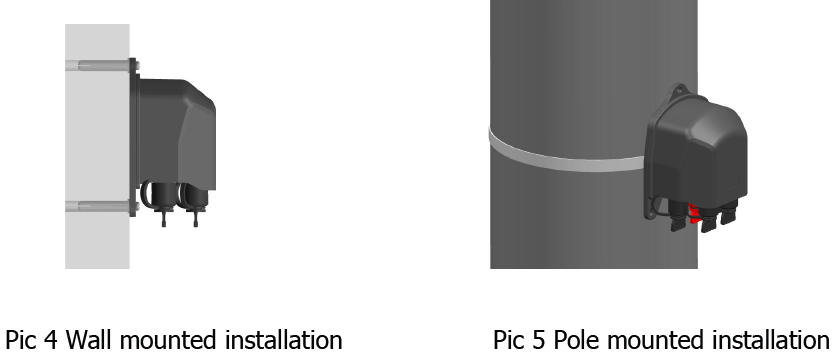

(Wall-mounted installation)

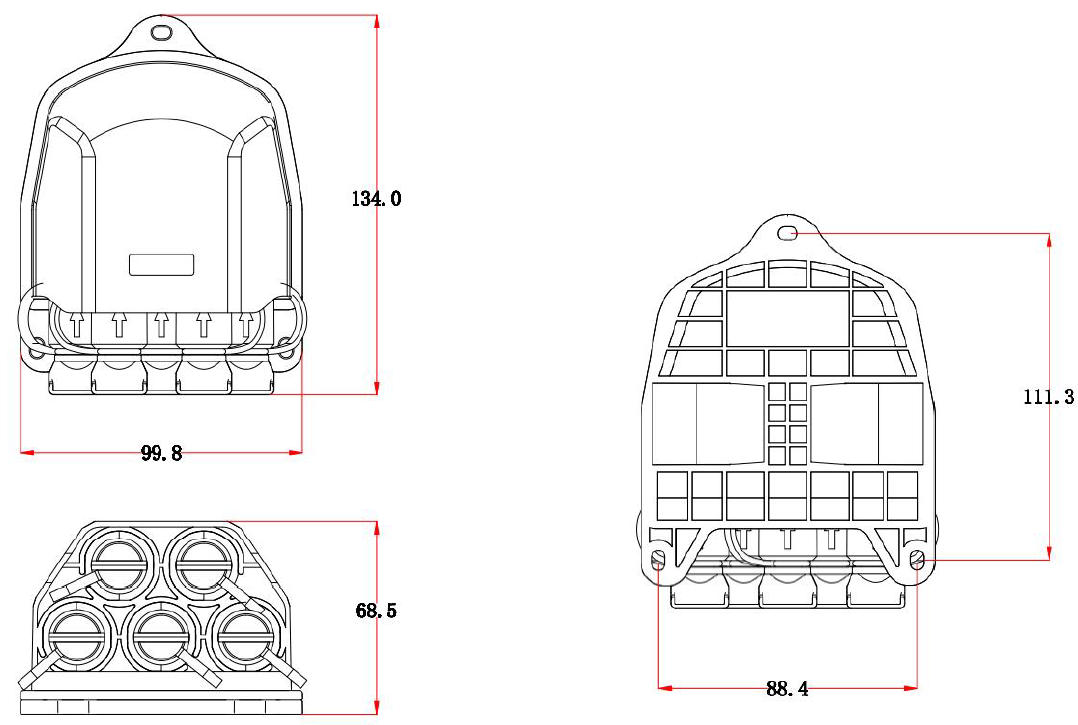

Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten. (Pic 4)

(Pole-mounted installation)

Fix 1 set of the pole ring to the telecom pole (Pic 5)

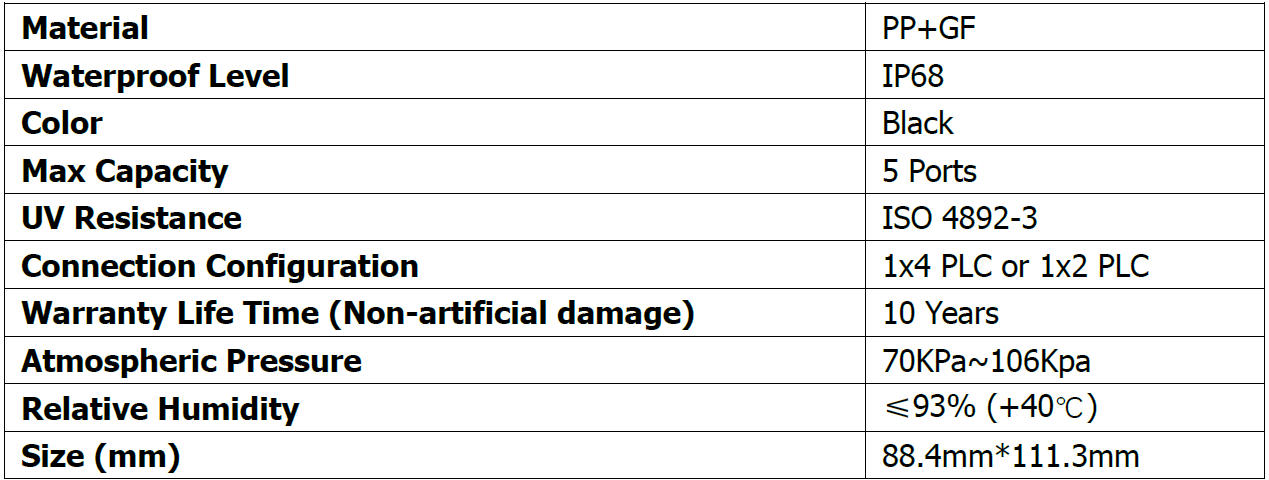

Technical Parameter
