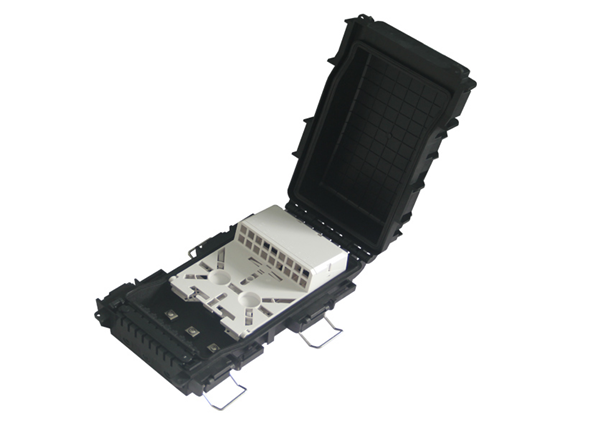

FTTX FTTH Outdoor IP65 18 Ports Fiber Optical Distribution Terminal Splitter Box

Item Description

This kind of outdoor fiber optical distribution terminal box from NEATEL is a specially designed 16-core optical fiber distribution box, intended to protect the connectors of optical cables. Excess optical fibers can be stored in the compartment at the bottom of the box. The flip-type fusion splice tray design is equipped with adapter slots. One tray can fuse 12 optical fibers. Made of modified PP material, it features UV resistance, anti-aging, and corrosion resistance. It boasts excellent quality and long service life. It is reusable.

Features and Applications

✔ The sealing level of the box body is IP65;
✔ There are 3 cable entrances and exits, and their seals are made of silicone;
✔ Fully mechanical seal. Easy to install and re-enter. No need for additional sealing tape;
✔ The bottom of the box features a storage area designed to accommodate excess optical cables;
✔ Both internal components and fasteners are made of stainless steel;
✔ The adapter installation tray can accommodate 18 SC fiber optic adapters, and the tray can be rotated 90 degrees for ease of operation. It can also accommodate PLC splitters;
✔ The splice tray chassis can be used for splicing, fiber storage, and installation of PLC splitters.

Application

✔ FTTH access networks requiring multi-user fiber distribution;
✔ Telecom central office and access point terminations;
✔ Rural broadband deployment with pole or wall-mounted installations;
✔ Enterprise and campus networks with outdoor distribution points;
✔ Data centers and ODF systems needing structured fiber connectivity.

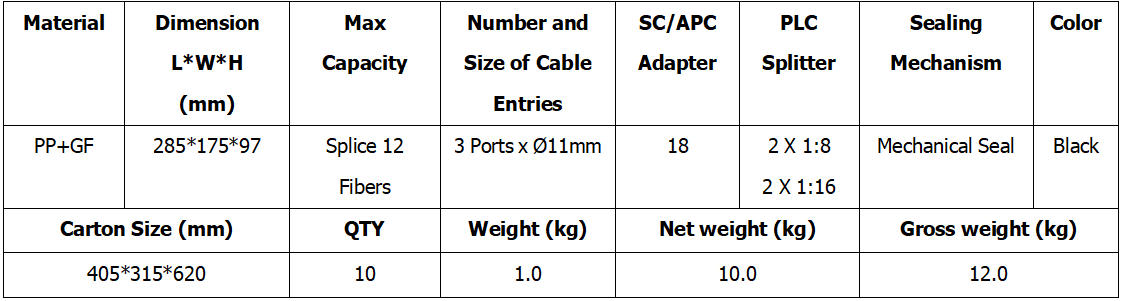

Technical Parameter

Installation Method

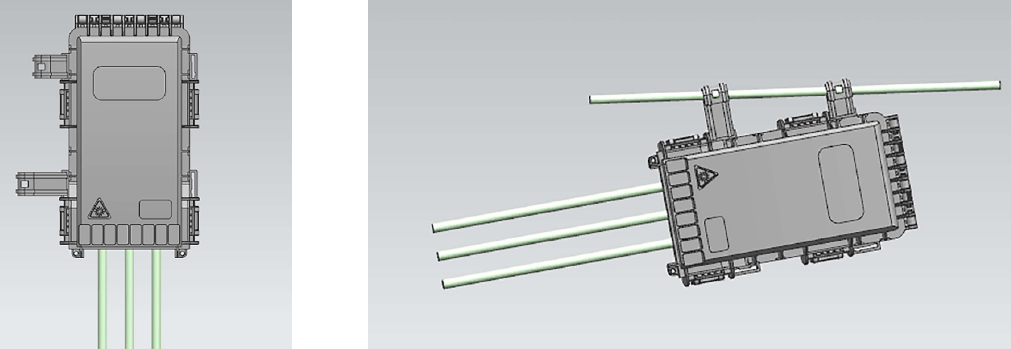

(1) Pole Installation

(2) Overhead

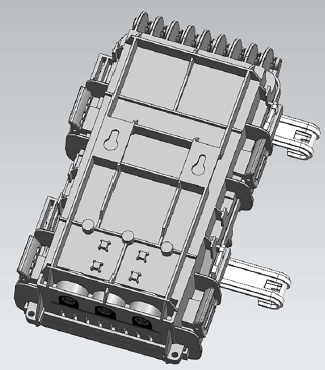

(3) Wall Mounted

Wall Mounted.png
